Infineon Technologies-IRFB17N20D - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	170mOhm @ 9.8A, 10V
Vgs(th) (Max) @ Id:	5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	50 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	1100 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3.8W (Ta), 140W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3

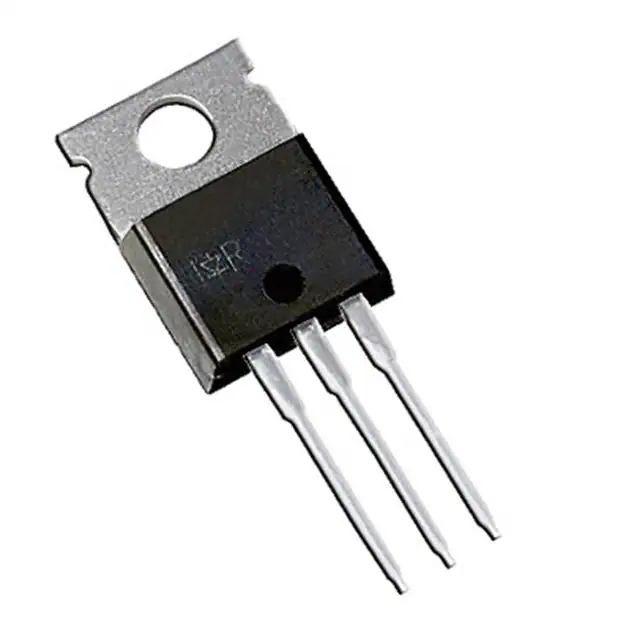

Infineon Technologies IRFB17N20D
