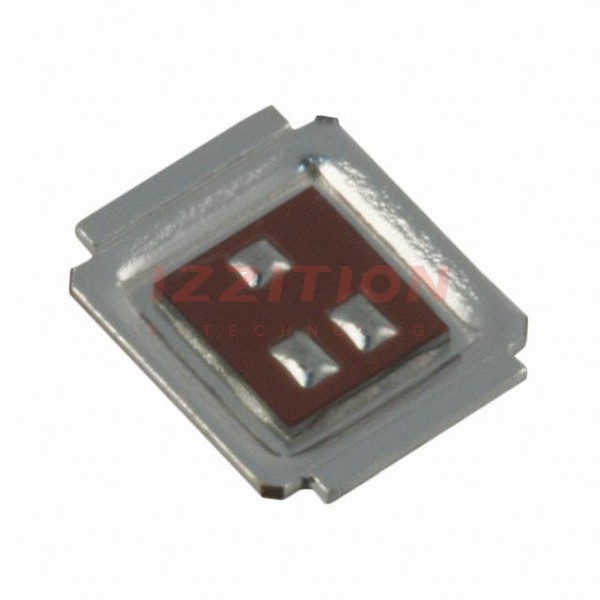

| Part Number | IRF8301MTRPBF | IRF8304MTRPBF | IRF8302MTRPBF | IRF8306MTRPBF | IRF8308MTRPBF |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Active | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Ta), 192A (Tc) | 28A (Ta), 170A (Tc) | 31A (Ta), 190A (Tc) | 23A (Ta), 140A (Tc) | 27A (Ta), 150A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.5mOhm @ 32A, 10V | 2.2mOhm @ 28A, 10V | 1.8mOhm @ 31A, 10V | 2.5mOhm @ 23A, 10V | 2.5mOhm @ 27A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 150µA | 2.35V @ 100µA | 2.35V @ 150µA | 2.35V @ 100µA | 2.35V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 77 nC @ 4.5 V | 42 nC @ 4.5 V | 53 nC @ 4.5 V | 38 nC @ 4.5 V | 42 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6140 pF @ 15 V | 4700 pF @ 15 V | 6030 pF @ 15 V | 4110 pF @ 15 V | 4404 pF @ 15 V |
| FET Feature | - | - | - | Schottky Diode (Body) | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 100W (Tc) | 2.8W (Ta), 104W (Tc) | 2.1W (Ta), 75W (Tc) | 2.8W (Ta), 89W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ MT | DirectFET™ Isometric MX | DIRECTFET™ MX | DIRECTFET™ MX | DIRECTFET™ MX |
| Package / Case | DirectFET™ Isometric MT | DirectFET™ Isometric MX | DirectFET™ Isometric MX | DirectFET™ Isometric MX | DirectFET™ Isometric MX |
