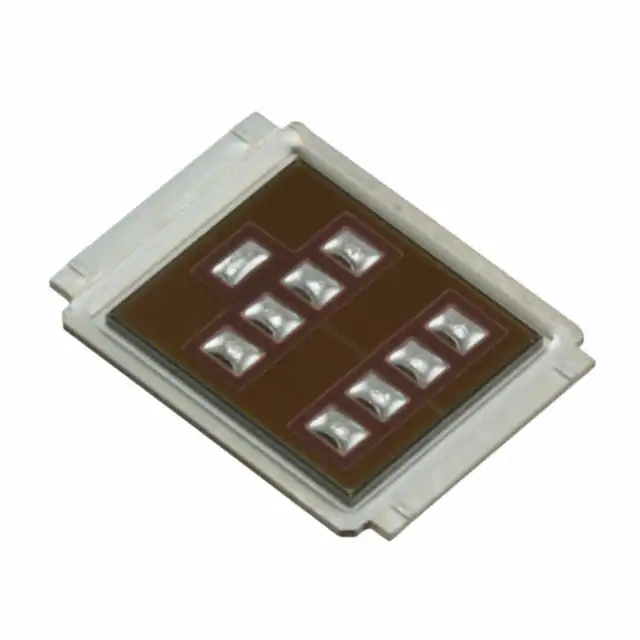

| Part Number | IRF7799L2TR1PBF | IRF7799L2TRPBF | IRF7739L2TR1PBF | IRF7749L2TR1PBF | IRF7759L2TR1PBF | IRF7769L2TR1PBF | IRF7779L2TR1PBF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 250 V | 40 V | 60 V | 75 V | 100 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 375A (Tc) | 35A (Tc) | 46A (Ta), 375A (Tc) | 33A (Ta), 375A (Tc) | 26A (Ta), 375A (Tc) | 375A (Tc) | 375A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 38mOhm @ 21A, 10V | 38mOhm @ 21A, 10V | 1mOhm @ 160A, 10V | 1.5mOhm @ 120A, 10V | 2.3mOhm @ 96A, 10V | 3.5mOhm @ 74A, 10V | 11mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 165 nC @ 10 V | 165 nC @ 10 V | 330 nC @ 10 V | 300 nC @ 10 V | 300 nC @ 10 V | 300 nC @ 10 V | 150 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6714 pF @ 25 V | 6714 pF @ 25 V | 11880 pF @ 25 V | 12320 pF @ 25 V | 12222 pF @ 25 V | 11560 pF @ 25 V | 6660 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 4.3W (Ta), 125W (Tc) | 4.3W (Ta), 125W (Tc) | 3.8W (Ta), 125W (Tc) | 3.3W (Ta), 125W (Tc) | 3.3W (Ta), 125W (Tc) | 3.3W (Ta), 125W (Tc) | 3.3W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 |
| Package / Case | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 | DirectFET™ Isometric L8 |
