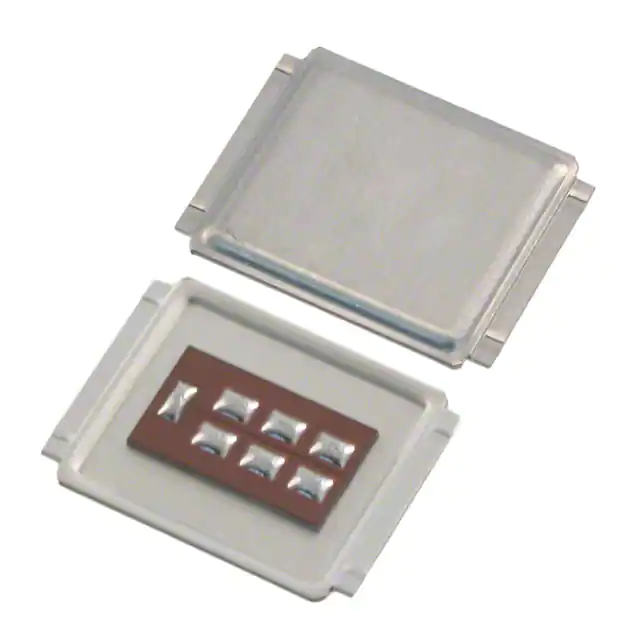

| Part Number | IRF7748L1TRPBF | IRF7749L1TRPBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta), 148A (Tc) | 33A (Ta), 200A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.2mOhm @ 89A, 10V | 1.5mOhm @ 120A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 220 nC @ 10 V | 300 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8075 pF @ 50 V | 12320 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.3W (Ta), 94W (Tc) | 3.3W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET L6 | DirectFET™ Isometric L8 |
| Package / Case | DirectFET™ Isometric L6 | DirectFET™ Isometric L8 |
