Please send RFQ , we will respond immediately.

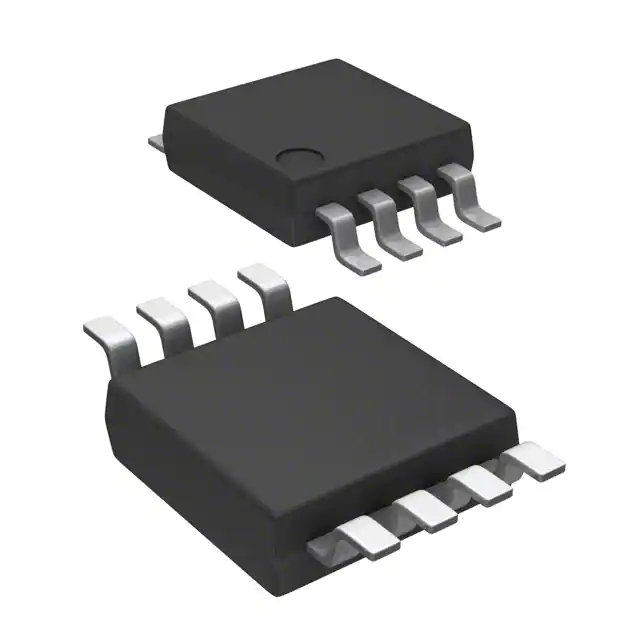

| Part Number | IRF7601TR | IRF7606TR | IRF7603TR | IRF7604TR | IRF7701TR |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | P-Channel | N-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 30 V | 30 V | 20 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 5.7A (Ta) | 3.6A (Ta) | 5.6A (Ta) | 3.6A (Ta) | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | - | - | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 3.8A, 4.5V | 90mOhm @ 2.4A, 10V | 35mOhm @ 3.7A, 10V | 90mOhm @ 2.4A, 4.5V | 11mOhm @ 10A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) | 1V @ 250µA | 1V @ 250µA | 700mV @ 250µA (Min) | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 4.5 V | 30 nC @ 10 V | 27 nC @ 10 V | 20 nC @ 4.5 V | 100 nC @ 4.5 V |
| Vgs (Max) | - | ±20V | - | - | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 15 V | 520 pF @ 25 V | 520 pF @ 25 V | 590 pF @ 15 V | 5050 pF @ 10 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | - | 1.8W (Ta) | - | - | 1.5W (Ta) |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | Micro8™ | Micro8™ | Micro8™ | Micro8™ | 8-TSSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP (0.173", 4.40mm Width) |
