| Part Number | IRF7501TR | IRF7503TR | IRF7504TR | IRF7506TR | IRF7507TR | IRF7509TR |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 P-Channel (Dual) | 2 P-Channel (Dual) | N and P-Channel | N and P-Channel |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 30V | 20V | 30V | 20V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 2.4A | 2.4A | 1.7A | 1.7A | 2.4A, 1.7A | 2.7A, 2A |
| Rds On (Max) @ Id, Vgs | 135mOhm @ 1.7A, 4.5V | 135mOhm @ 1.7A, 10V | 270mOhm @ 1.2A, 4.5V | 270mOhm @ 1.2A, 10V | 140mOhm @ 1.7A, 4.5V | 110mOhm @ 1.4A, 10V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA | 1V @ 250µA | 700mV @ 250µA | 1V @ 250µA | 700mV @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 4.5V | 12nC @ 10V | 8.2nC @ 4.5V | 11nC @ 10V | 8nC @ 4.5V | 12nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 260pF @ 15V | 210pF @ 25V | 240pF @ 15V | 180pF @ 25V | 260pF @ 15V | 210pF @ 25V |
| Power - Max | 1.25W | 1.25W | 1.25W | 1.25W | 1.25W | 1.25W |
| Operating Temperature | - | - | -55°C ~ 150°C (TJ) | - | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

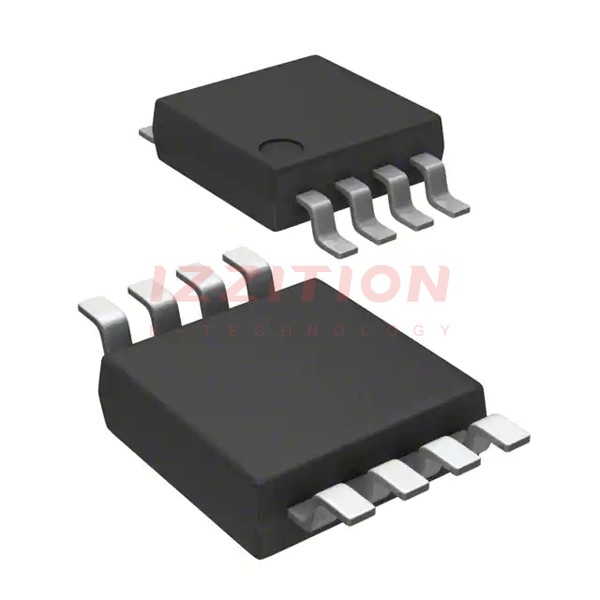

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | Micro8™ | Micro8™ | Micro8™ | Micro8™ | Micro8™ | Micro8™ |
