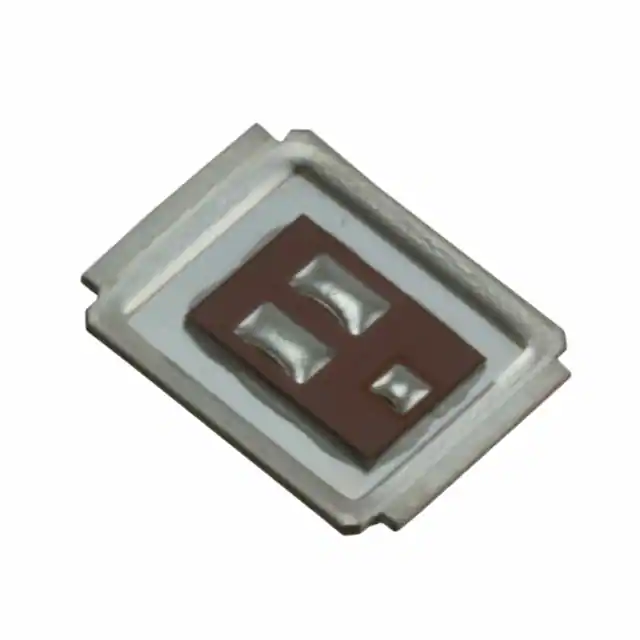

| Part Number | IRF6893MTR1PBF | IRF6894MTR1PBF | IRF6898MTR1PBF | IRF6893MTRPBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta), 168A (Tc) | 32A (Ta), 160A (Tc) | 35A (Ta), 213A (Tc) | 29A (Ta), 168A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.6mOhm @ 29A, 10V | 1.3mOhm @ 33A, 10V | 1.1mOhm @ 35A, 10V | 1.6mOhm @ 29A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 100µA | 2.1V @ 100µA | 2.1V @ 100µA | 2.1V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 4.5 V | 39 nC @ 4.5 V | 62 nC @ 4.5 V | 38 nC @ 4.5 V |
| Vgs (Max) | ±16V | ±16V | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 3480 pF @ 13 V | 4160 pF @ 13 V | 5435 pF @ 13 V | 3480 pF @ 13 V |
| FET Feature | - | Schottky Diode (Body) | Schottky Diode (Body) | - |
| Power Dissipation (Max) | 2.1W (Ta), 69W (Tc) | 2.1W (Ta), 54W (Tc) | 2.1W (Ta), 78W (Tc) | 2.1W (Ta), 69W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ MX | DIRECTFET™ MX | DIRECTFET™ MX | DIRECTFET™ MX |
| Package / Case | DirectFET™ Isometric MX | DirectFET™ Isometric MX | DirectFET™ Isometric MX | DirectFET™ Isometric MX |
