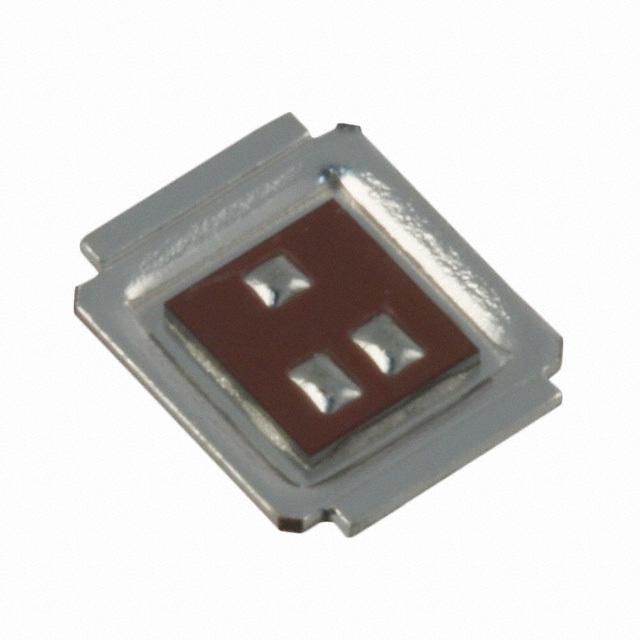

| Part Number | IRF6691TR1PBF | IRF6691TRPBF | IRF6621TR1PBF | IRF6631TR1PBF | IRF6641TR1PBF |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 30 V | 30 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Ta), 180A (Tc) | 32A (Ta), 180A (Tc) | 12A (Ta), 55A (Tc) | 13A (Ta), 57A (Tc) | 4.6A (Ta), 26A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 15A, 10V | 1.8mOhm @ 15A, 10V | 9.1mOhm @ 12A, 10V | 7.8mOhm @ 13A, 10V | 59.9mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2.5V @ 250µA | 2.25V @ 250µA | 2.35V @ 25µA | 4.9V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 71 nC @ 4.5 V | 71 nC @ 4.5 V | 17.5 nC @ 4.5 V | 18 nC @ 4.5 V | 48 nC @ 10 V |
| Vgs (Max) | ±12V | ±12V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6580 pF @ 10 V | 6580 pF @ 10 V | 1460 pF @ 15 V | 1450 pF @ 15 V | 2290 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.2W (Ta), 42W (Tc) | 2.2W (Ta), 42W (Tc) | 2.8W (Ta), 89W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ MT | DIRECTFET™ MT | DIRECTFET™ SQ | DIRECTFET™ SQ | DIRECTFET™ MZ |
| Package / Case | DirectFET™ Isometric MT | DirectFET™ Isometric MT | DirectFET™ Isometric SQ | DirectFET™ Isometric SQ | DirectFET™ Isometric MZ |
