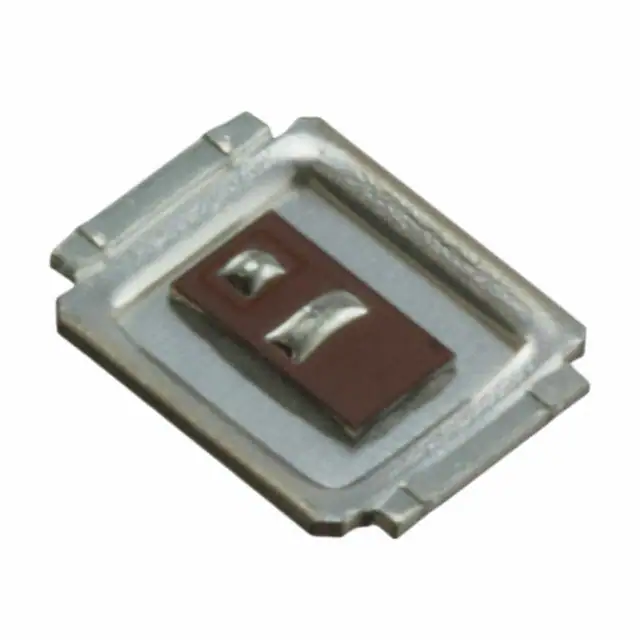

| Part Number | IRF6665TR1 | IRF6668TR1 | IRF6635TR1 | IRF6655TR1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 80 V | 30 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 4.2A (Ta), 19A (Tc) | 55A (Tc) | 32A (Ta), 180A (Tc) | 4.2A (Ta), 19A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 62mOhm @ 5A, 10V | 15mOhm @ 12A, 10V | 1.8mOhm @ 32A, 10V | 62mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 4.9V @ 100µA | 2.35V @ 250µA | 4.8V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 31 nC @ 10 V | 71 nC @ 4.5 V | 11.7 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 530 pF @ 25 V | 1320 pF @ 25 V | 5970 pF @ 15 V | 530 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 2.2W (Ta), 42W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.2W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ SH | DIRECTFET™ MZ | DIRECTFET™ MX | DIRECTFET™ SH |
| Package / Case | DirectFET™ Isometric SH | DirectFET™ Isometric MZ | DirectFET™ Isometric MX | DirectFET™ Isometric SH |
