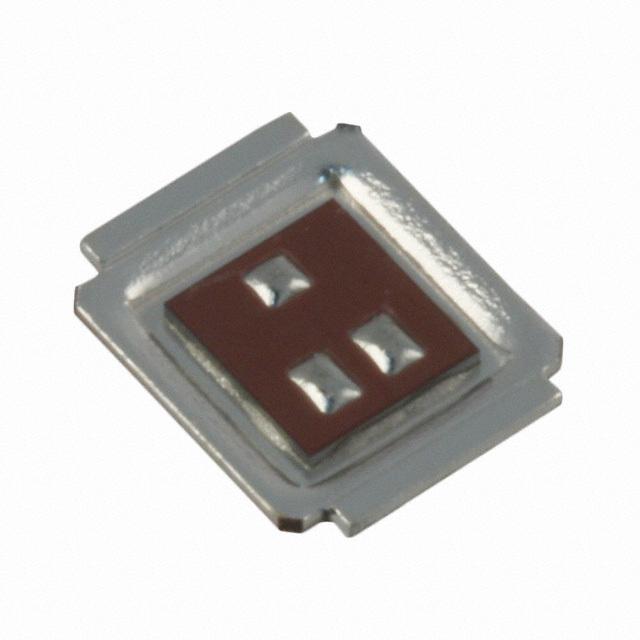

| Part Number | IRF6646TR1PBF | IRF6646TRPBF | IRF6648TR1PBF | IRF6616TR1PBF | IRF6626TR1PBF | IRF6636TR1PBF | IRF6641TR1PBF | IRF6643TR1PBF | IRF6644TR1PBF | IRF6645TR1PBF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V | 60 V | 40 V | 30 V | 20 V | 200 V | 150 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 68A (Tc) | 12A (Ta), 68A (Tc) | 86A (Tc) | 19A (Ta), 106A (Tc) | 16A (Ta), 72A (Tc) | 18A (Ta), 81A (Tc) | 4.6A (Ta), 26A (Tc) | 6.2A (Ta), 35A (Tc) | 10.3A (Ta), 60A (Tc) | 5.7A (Ta), 25A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 12A, 10V | 9.5mOhm @ 12A, 10V | 7mOhm @ 17A, 10V | 5mOhm @ 19A, 10V | 5.4mOhm @ 16A, 10V | 4.5mOhm @ 18A, 10V | 59.9mOhm @ 5.5A, 10V | 34.5mOhm @ 7.6A, 10V | 13mOhm @ 10.3A, 10V | 35mOhm @ 5.7A, 10V |
| Vgs(th) (Max) @ Id | 4.9V @ 150µA | 4.9V @ 150µA | 4.9V @ 150µA | 2.25V @ 250µA | 2.35V @ 250µA | 2.45V @ 250µA | 4.9V @ 150µA | 4.9V @ 150µA | 4.8V @ 150µA | 4.9V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V | 50 nC @ 10 V | 50 nC @ 10 V | 44 nC @ 4.5 V | 29 nC @ 4.5 V | 27 nC @ 4.5 V | 48 nC @ 10 V | 55 nC @ 10 V | 47 nC @ 10 V | 20 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2060 pF @ 25 V | 2060 pF @ 25 V | 2120 pF @ 25 V | 3765 pF @ 20 V | 2380 pF @ 15 V | 2420 pF @ 10 V | 2290 pF @ 25 V | 2340 pF @ 25 V | 2210 pF @ 25 V | 890 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.2W (Ta), 42W (Tc) | 2.2W (Ta), 42W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.2W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ MN | DIRECTFET™ MN | DIRECTFET™ MN | DIRECTFET™ MX | DIRECTFET™ ST | DIRECTFET™ ST | DIRECTFET™ MZ | DIRECTFET™ MZ | DIRECTFET™ MN | DIRECTFET™ SJ |
| Package / Case | DirectFET™ Isometric MN | DirectFET™ Isometric MN | DirectFET™ Isometric MN | DirectFET™ Isometric MX | DirectFET™ Isometric ST | DirectFET™ Isometric ST | DirectFET™ Isometric MZ | DirectFET™ Isometric MZ | DirectFET™ Isometric MN | DirectFET™ Isometric SJ |
