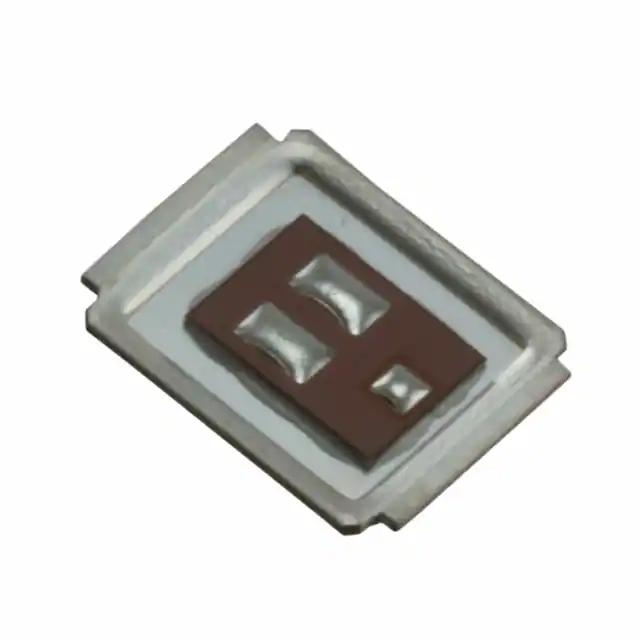

| Part Number | IRF6638TR1PBF | IRF6638TRPBF | IRF6648TR1PBF | IRF6668TR1PBF | IRF6678TR1PBF | IRF6618TR1PBF | IRF6628TR1PBF | IRF6631TR1PBF | IRF6633TR1PBF | IRF6635TR1PBF | IRF6636TR1PBF | IRF6637TR1PBF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 60 V | 80 V | 30 V | 30 V | 25 V | 30 V | 20 V | 30 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta), 140A (Tc) | 25A (Ta), 140A (Tc) | 86A (Tc) | 55A (Tc) | 30A (Ta), 150A (Tc) | 30A (Ta), 170A (Tc) | 27A (Ta), 160A (Tc) | 13A (Ta), 57A (Tc) | 16A (Ta), 59A (Tc) | 32A (Ta), 180A (Tc) | 18A (Ta), 81A (Tc) | 14A (Ta), 59A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 10V | 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.9mOhm @ 25A, 10V | 2.9mOhm @ 25A, 10V | 7mOhm @ 17A, 10V | 15mOhm @ 12A, 10V | 2.2mOhm @ 30A, 10V | 2.2mOhm @ 30A, 10V | 2.5mOhm @ 27A, 10V | 7.8mOhm @ 13A, 10V | 5.6mOhm @ 16A, 10V | 1.8mOhm @ 32A, 10V | 4.5mOhm @ 18A, 10V | 7.7mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 100µA | 2.35V @ 100µA | 4.9V @ 150µA | 4.9V @ 100µA | 2.25V @ 250µA | 2.35V @ 250µA | 2.35V @ 100µA | 2.35V @ 25µA | 2.2V @ 250µA | 2.35V @ 250µA | 2.45V @ 250µA | 2.35V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 4.5 V | 45 nC @ 4.5 V | 50 nC @ 10 V | 31 nC @ 10 V | 65 nC @ 4.5 V | 65 nC @ 4.5 V | 47 nC @ 4.5 V | 18 nC @ 4.5 V | 17 nC @ 4.5 V | 71 nC @ 4.5 V | 27 nC @ 4.5 V | 17 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3770 pF @ 15 V | 3770 pF @ 15 V | 2120 pF @ 25 V | 1320 pF @ 25 V | 5640 pF @ 15 V | 5640 pF @ 15 V | 3770 pF @ 15 V | 1450 pF @ 15 V | 1250 pF @ 10 V | 5970 pF @ 15 V | 2420 pF @ 10 V | 1330 pF @ 15 V |
| FET Feature | - | - | - | - | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 96W (Tc) | 2.2W (Ta), 42W (Tc) | 2.3W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.2W (Ta), 42W (Tc) | 2.3W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ MX | DIRECTFET™ MX | DIRECTFET™ MN | DIRECTFET™ MZ | DIRECTFET™ MX | DIRECTFET™ MT | DIRECTFET™ MX | DIRECTFET™ SQ | DIRECTFET™ MP | DIRECTFET™ MX | DIRECTFET™ ST | DIRECTFET™ MP |
| Package / Case | DirectFET™ Isometric MX | DirectFET™ Isometric MX | DirectFET™ Isometric MN | DirectFET™ Isometric MZ | DirectFET™ Isometric MX | DirectFET™ Isometric MT | DirectFET™ Isometric MX | DirectFET™ Isometric SQ | DirectFET™ Isometric MP | DirectFET™ Isometric MX | DirectFET™ Isometric ST | DirectFET™ Isometric MP |
