Please send RFQ , we will respond immediately.

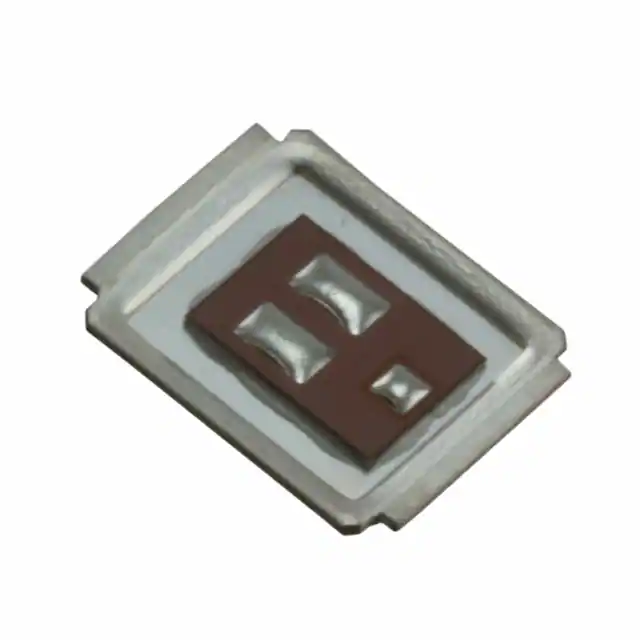

| Part Number | IRF6611TRPBF | IRF6616TRPBF | IRF6618TRPBF | IRF6614TRPBF | IRF6617TRPBF | IRF6613TRPBF | IRF6641TRPBF | IRF6612TRPBF | IRF6619TRPBF | IRF6621TRPBF | IRF6631TRPBF | IRF6610TRPBF | IRF6611TR1PBF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active | Active | Not For New Designs | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 40 V | 30 V | 40 V | 30 V | 40 V | 200 V | 30 V | 20 V | 30 V | 30 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Ta), 150A (Tc) | 19A (Ta), 106A (Tc) | 30A (Ta), 170A (Tc) | 12.7A (Ta), 55A (Tc) | 14A (Ta), 55A (Tc) | 23A (Ta), 150A (Tc) | 4.6A (Ta), 26A (Tc) | 24A (Ta), 136A (Tc) | 30A (Ta), 150A (Tc) | 12A (Ta), 55A (Tc) | 13A (Ta), 57A (Tc) | 15A (Ta), 66A (Tc) | 32A (Ta), 150A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 27A, 10V | 5mOhm @ 19A, 10V | 2.2mOhm @ 30A, 10V | 8.3mOhm @ 12.7A, 10V | 8.1mOhm @ 15A, 10V | 3.4mOhm @ 23A, 10V | 59.9mOhm @ 5.5A, 10V | 3.3mOhm @ 24A, 10V | 2.2mOhm @ 30A, 10V | 9.1mOhm @ 12A, 10V | 7.8mOhm @ 13A, 10V | 6.8mOhm @ 15A, 10V | 2.6mOhm @ 27A, 10V |
| Vgs(th) (Max) @ Id | 2.25V @ 250µA | 2.25V @ 250µA | 2.35V @ 250µA | 2.25V @ 250µA | 2.35V @ 250µA | 2.25V @ 250µA | 4.9V @ 150µA | 2.25V @ 250µA | 2.45V @ 250µA | 2.25V @ 250µA | 2.35V @ 25µA | 2.55V @ 250µA | 2.25V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 4.5 V | 44 nC @ 4.5 V | 65 nC @ 4.5 V | 29 nC @ 4.5 V | 17 nC @ 4.5 V | 63 nC @ 4.5 V | 48 nC @ 10 V | 45 nC @ 4.5 V | 57 nC @ 4.5 V | 17.5 nC @ 4.5 V | 18 nC @ 4.5 V | 17 nC @ 4.5 V | 56 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4860 pF @ 15 V | 3765 pF @ 20 V | 5640 pF @ 15 V | 2560 pF @ 20 V | 1300 pF @ 15 V | 5950 pF @ 15 V | 2290 pF @ 25 V | 3970 pF @ 15 V | 5040 pF @ 10 V | 1460 pF @ 15 V | 1450 pF @ 15 V | 1520 pF @ 10 V | 4860 pF @ 15 V |
| FET Feature | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 3.9W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.1W (Ta), 42W (Tc) | 2.1W (Ta), 42W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 2.2W (Ta), 42W (Tc) | 2.2W (Ta), 42W (Tc) | 2.2W (Ta), 42W (Tc) | 3.9W (Ta), 89W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ MX | DIRECTFET™ MX | DIRECTFET™ MT | DIRECTFET™ ST | DIRECTFET™ ST | DIRECTFET™ MT | DIRECTFET™ MZ | DIRECTFET™ MX | DIRECTFET™ MX | DIRECTFET™ SQ | DIRECTFET™ SQ | DIRECTFET™ SQ | DIRECTFET™ MX |
| Package / Case | DirectFET™ Isometric MX | DirectFET™ Isometric MX | DirectFET™ Isometric MT | DirectFET™ Isometric ST | DirectFET™ Isometric ST | DirectFET™ Isometric MT | DirectFET™ Isometric MZ | DirectFET™ Isometric MX | DirectFET™ Isometric MX | DirectFET™ Isometric SQ | DirectFET™ Isometric SQ | DirectFET™ Isometric SQ | DirectFET™ Isometric MX |
