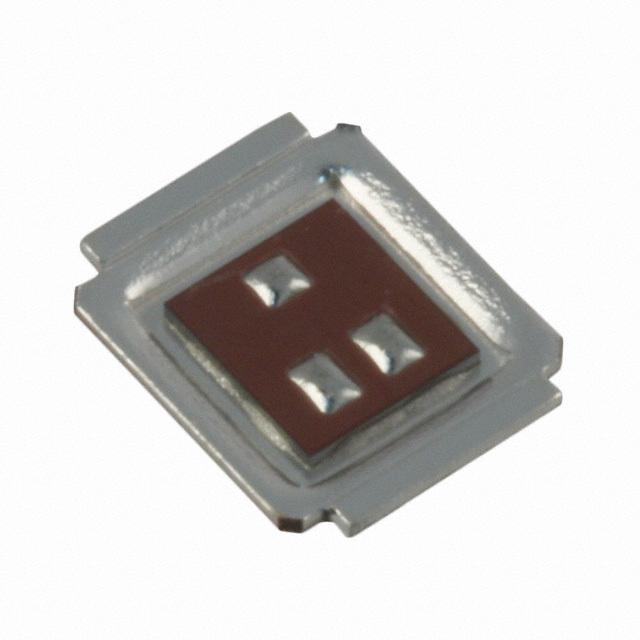

| Part Number | IRF6609 | IRF6619 | IRF6601 | IRF6602 | IRF6603 | IRF6607 | IRF6608 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 20 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Ta), 150A (Tc) | 30A (Ta), 150A (Tc) | 26A (Ta), 85A (Tc) | 11A (Ta), 48A (Tc) | 27A (Ta), 92A (Tc) | 27A (Ta), 94A (Tc) | 13A (Ta), 55A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 7V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 31A, 10V | 2.2mOhm @ 30A, 10V | 3.8mOhm @ 26A, 10V | 13mOhm @ 11A, 10V | 3.4mOhm @ 25A, 10V | 3.3mOhm @ 25A, 10V | 9mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 2.45V @ 250µA | 2.45V @ 250µA | 2.2V @ 250µA | 2.3V @ 250µA | 2.5V @ 250µA | 2V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 69 nC @ 4.5 V | 57 nC @ 4.5 V | 45 nC @ 4.5 V | 18 nC @ 4.5 V | 72 nC @ 4.5 V | 75 nC @ 4.5 V | 24 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | +20V, -12V | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 6290 pF @ 10 V | 5040 pF @ 10 V | 3440 pF @ 15 V | 1420 pF @ 10 V | 6590 pF @ 15 V | 6930 pF @ 15 V | 2120 pF @ 15 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 1.8W (Ta), 89W (Tc) | 2.8W (Ta), 89W (Tc) | 3.6W (Ta), 42W (Tc) | 2.3W (Ta), 42W (Tc) | 3.6W (Ta), 42W (Tc) | 3.6W (Ta), 42W (Tc) | 2.1W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | - | - | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DIRECTFET™ MT | DIRECTFET™ MX | DIRECTFET™ MT | DIRECTFET™ MQ | DIRECTFET™ MT | DIRECTFET™ MT | DIRECTFET™ ST |
| Package / Case | DirectFET™ Isometric MT | DirectFET™ Isometric MX | DirectFET™ Isometric MT | DirectFET™ Isometric MQ | DirectFET™ Isometric MT | DirectFET™ Isometric MT | DirectFET™ Isometric ST |
