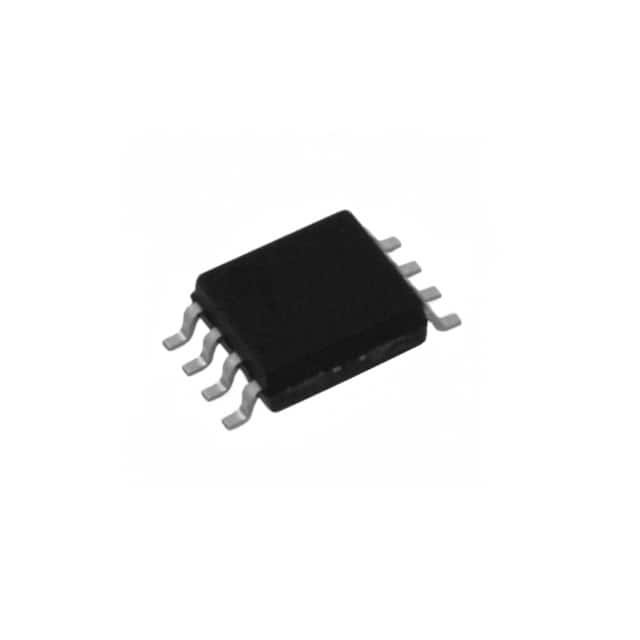

| Part Number | IRF6216TRPBF-1 | IRF6217TRPBF-1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 2.2A (Ta) | 700mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 240mOhm @ 1.3A, 10V | 2.4Ohm @ 420mA, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 49 nC @ 10 V | 9 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1280 pF @ 25 V | 150 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.5W (Ta) | 2.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-223 | 8-SO |
| Package / Case | TO-261-4, TO-261AA | 8-SOIC (0.154", 3.90mm Width) |
