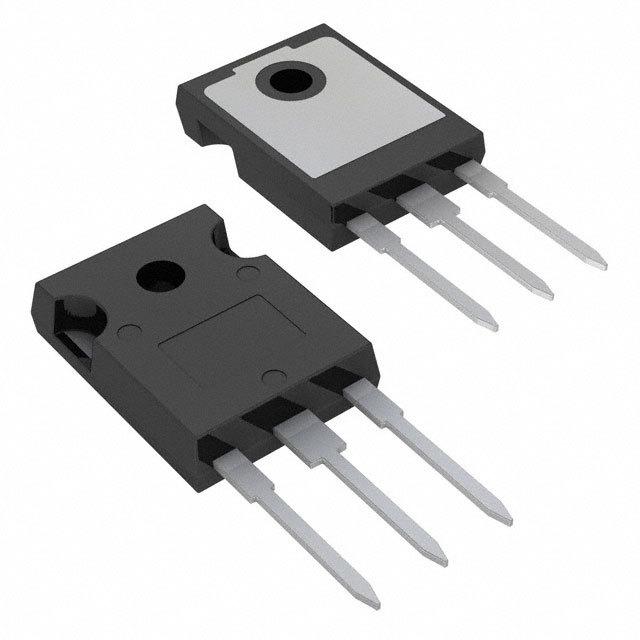

| Part Number | IRF200P223 | IRF200P222 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 182A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 11.5mOhm @ 60A, 10V | 6.6mOhm @ 82A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 270µA | 4V @ 270µA |
| Gate Charge (Qg) (Max) @ Vgs | 102 nC @ 10 V | 203 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5094 pF @ 50 V | 9820 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 313W (Tc) | 556W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-247AC | TO-247AC |
| Package / Case | TO-247-3 | TO-247-3 |
