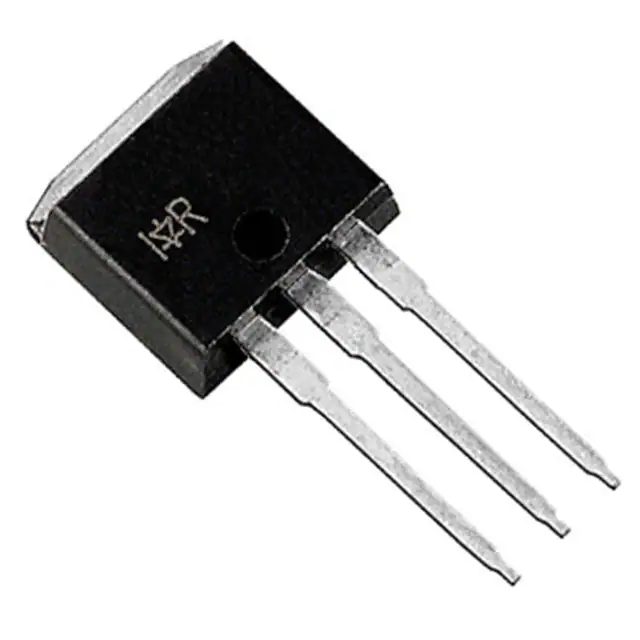

| Part Number | IRF1104L | IRF1404L | IRF1104S |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 162A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 60A, 10V | 4mOhm @ 95A, 10V | 9mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 93 nC @ 10 V | 200 nC @ 10 V | 93 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2900 pF @ 25 V | 7360 pF @ 25 V | 2900 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2.4W (Ta), 170W (Tc) | 3.8W (Ta), 200W (Tc) | 2.4W (Ta), 170W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | TO-262 | TO-262 | D2PAK |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
