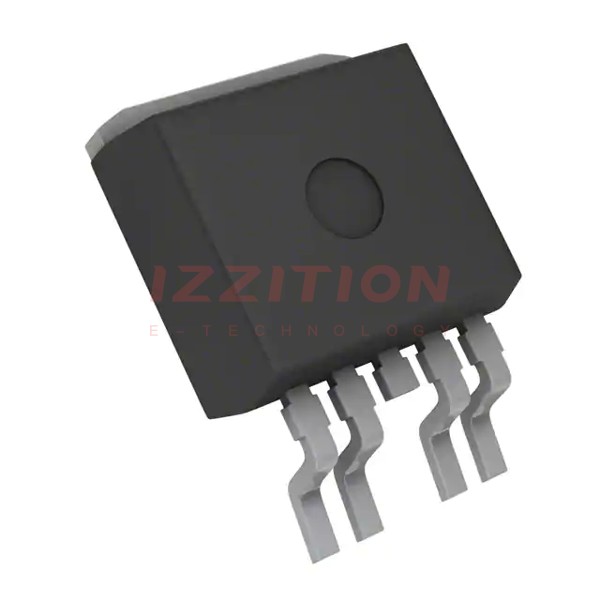

| Part Number | IR6210S | IR6220S | IR6216S |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 5V ~ 35V | 5V ~ 35V | 5V ~ 35V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 5A | 10A | 10A |
| Rds On (Typ) | 200mOhm | 80mOhm | 200mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | D2Pak (SMD-220 5-Lead) | D2Pak (SMD-220 5-Lead) | D2Pak (SMD-220 5-Lead) |
| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB |
