Please send RFQ , we will respond immediately.

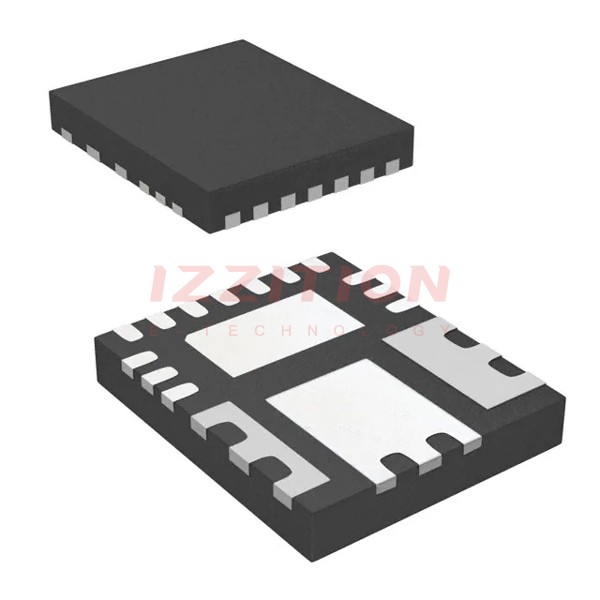

| Part Number | IR3870MTRPBF | IR3871MTRPBF | IR3876MTRPBF | IR3800MTRPBF | IR3810MTRPBF | IR3820MTRPBF | IR3840MTRPBF | IR3870MTR1PBF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 3V | 3V | 2.5V | 2.5V | 2.5V | 1.5V | 3V |
| Voltage - Input (Max) | 26V | 26V | 21V | 21V | 21V | 21V | 16V | 26V |
| Voltage - Output (Min/Fixed) | 0.5V | 0.5V | 0.5V | 0.6V | 0.6V | 0.6V | 0.7V | 0.5V |
| Voltage - Output (Max) | 12V | 12V | 12V | 12V | 12V | 12V | 14.4V | 12V |
| Current - Output | 10A | 8A | 12A | 12A | 12A | 12A | 12A | 10A |
| Frequency - Switching | Up to 1MHz | Up to 1MHz | Up to 1MHz | 600kHz | 600kHz | 600kHz | 225kHz ~ 1.65MHz | Up to 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | 0°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-PowerVQFN | 17-PowerVQFN | 17-PowerVQFN | 15-PowerVQFN | 15-PowerVQFN | 15-PowerVQFN | 15-PowerVQFN | 17-PowerVQFN |
| Supplier Device Package | PQFN (5x6) | PQFN (5x6) | PQFN (5x6) | PQFN (5x6) | PQFN (5x6) | PQFN (5x6) | PQFN (5x6) | PQFN (5x6) |
