| Part Number | IR3839MTRPBF | IR3899MTRPBF | IR3859MTRPBF | IR3837MTRPBF | IR3838MTRPBF | IR3839MTR1PBF |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 7V | 1V | 1.5V | 7V | 7V | 7V |
| Voltage - Input (Max) | 16V | 21V | 21V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.5V | 0.7V | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 14.4V | 18.06V | 18.9V | 14.4V | 14.4V | 14.4V |
| Current - Output | 6A | 9A | 9A | 14A | 10A | 6A |
| Frequency - Switching | 225kHz ~ 1.65MHz | 300kHz ~ 1.5MHz | 225kHz ~ 1.65MHz | 225kHz ~ 1.65MHz | 225kHz ~ 1.65MHz | 225kHz ~ 1.65MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

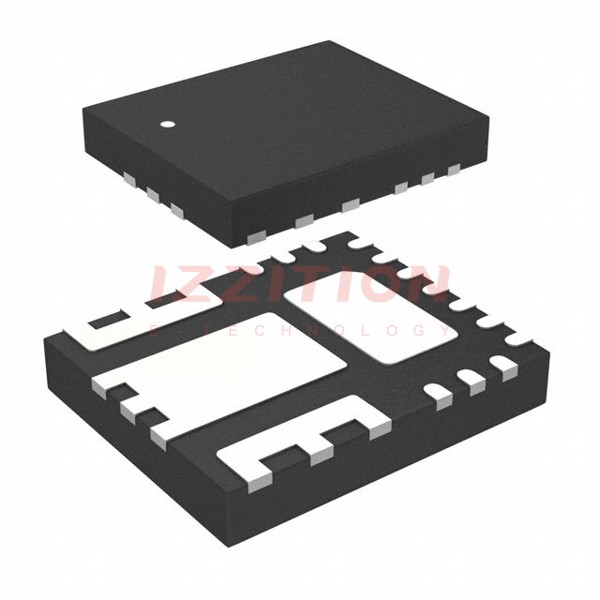

| Package / Case | 17-PowerVQFN | 16-PowerVQFN | 17-PowerVQFN | 17-PowerVQFN | 17-VQFN | 17-VQFN |
| Supplier Device Package | 17-PQFN (5x6) | 16-PQFN (4x5) | 17-PQFN (4x5) | 17-PQFN (5x6) | 17-PQFN (5x6) | 17-PQFN (5x6) |
