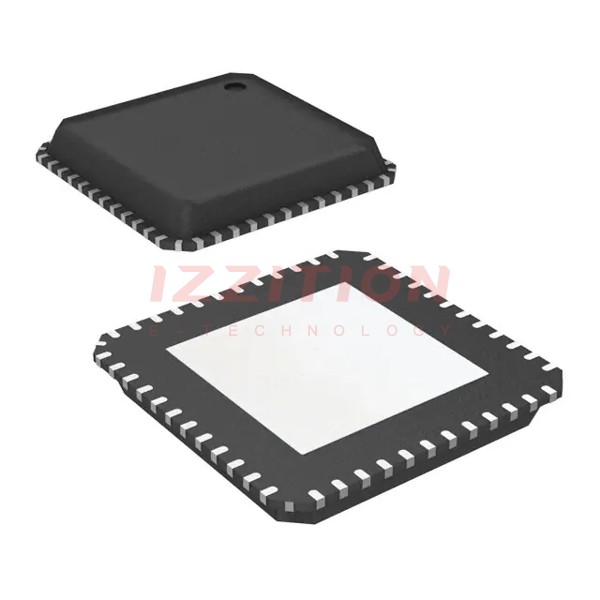

| Part Number | IR3566AMIN01TRP | IR3566AMIN02TRP | IR3566AMIS01TRP |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Type | PWM | PWM | PWM |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Number of Outputs | 7 | 7 | 7 |
| Output Phases | 6 | 6 | 6 |
| Voltage - Supply (Vcc/Vdd) | 3.3V | 3.3V | 3.3V |
| Frequency - Switching | 200kHz ~ 2MHz | 200kHz ~ 2MHz | 200kHz ~ 2MHz |
| Duty Cycle (Max) | - | - | - |
| Synchronous Rectifier | No | No | No |
| Clock Sync | No | No | No |
| Serial Interfaces | I²C, PMBus, SMBus | I²C, PMBus, SMBus | I²C, PMBus, SMBus |
| Control Features | Enable, Power Good | Enable, Power Good | Enable, Power Good |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | PG-VQFN-48-900 | PG-VQFN-48-900 | PG-VQFN-48-900 |
