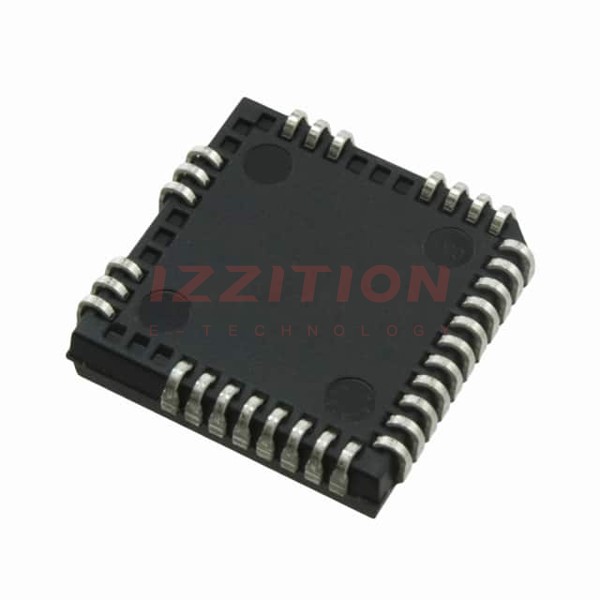

| Part Number | IR2233JTR | IR2235JTR |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | 3-Phase | 3-Phase |
| Number of Drivers | 6 | 6 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2V | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA | 250mA, 500mA |
| Input Type | Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | 1200 V | 1200 V |
| Rise / Fall Time (Typ) | 90ns, 40ns | 90ns, 40ns |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 44-LCC (J-Lead), 32 Leads | 44-LCC (J-Lead), 32 Leads |
| Supplier Device Package | 44-PLCC, 32 Leads (16.58x16.58) | 44-PLCC, 32 Leads (16.58x16.58) |
