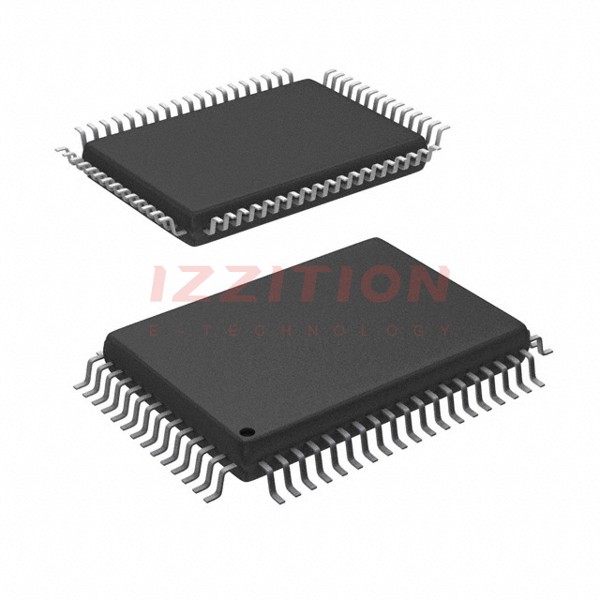

| Part Number | IR2138QPBF | IR21381QPBF |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | 3-Phase | 3-Phase |
| Number of Drivers | 6 | 6 |
| Gate Type | IGBT | IGBT |
| Voltage - Supply | 12.5V ~ 20V | 12.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2V | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 350mA, 200mA | 350mA, 540mA |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V |
| Rise / Fall Time (Typ) | 80ns, 25ns | 80ns, 25ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 64-BQFP | 64-BQFP |
| Supplier Device Package | 64-MQFP (20x14) | 64-MQFP (20x14) |
