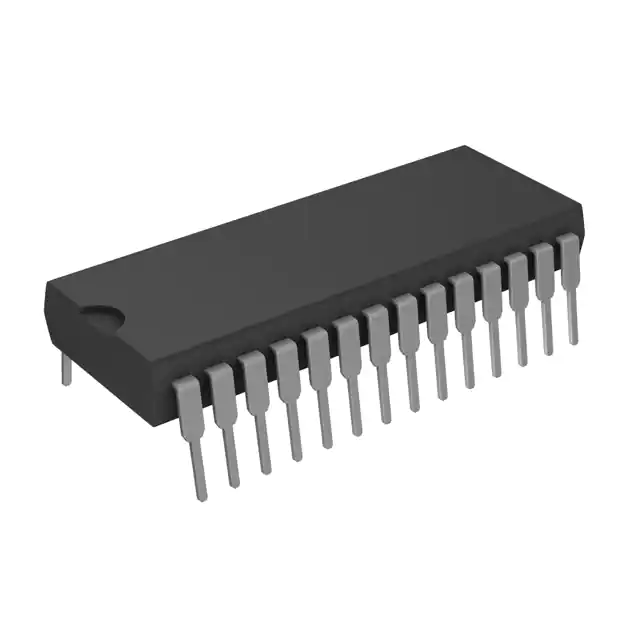

| Part Number | IR2135PBF | IR2136PBF | IR2155PBF | IR2135SPBF | IR2125PBF | IR2130PBF | IR2131PBF | IR2132PBF | IR2133PBF | IR2135JPBF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Last Time Buy | Obsolete | Obsolete | Active | Not For New Designs | Active | Last Time Buy | Discontinued at Digi-Key | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | High-Side | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | 3-Phase | 3-Phase | Synchronous | 3-Phase | Single | 3-Phase | Independent | 3-Phase | 3-Phase | 3-Phase |
| Number of Drivers | 6 | 6 | 2 | 6 | 1 | 6 | 6 | 6 | 6 | 6 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | 10V ~ 20V | 10V ~ 20V | 10V ~ 20V | 0V ~ 18V | 10V ~ 20V | 10V ~ 20V | 10V ~ 20V | 10V ~ 20V | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 0.8V, 3V | - | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA | 200mA, 350mA | 250mA, 500mA | 250mA, 500mA | 1.6A, 3.3A | 250mA, 500mA | 250mA, 500mA | 250mA, 500mA | 250mA, 500mA | 250mA, 500mA |
| Input Type | Inverting | Inverting | RC Input Circuit | Inverting | Non-Inverting | Inverting | Inverting | Inverting | Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V | 600 V | 600 V | 500 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Rise / Fall Time (Typ) | 90ns, 40ns | 125ns, 50ns | 80ns, 45ns | 90ns, 40ns | 43ns, 26ns | 80ns, 35ns | 80ns, 40ns | 80ns, 35ns | 90ns, 40ns | 90ns, 40ns |
| Operating Temperature | 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 8-DIP (0.300", 7.62mm) | 28-SOIC (0.295", 7.50mm Width) | 8-DIP (0.300", 7.62mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 44-LCC (J-Lead), 32 Leads |
| Supplier Device Package | 28-PDIP | 28-PDIP | 8-PDIP | 28-SOIC | 8-PDIP | 28-PDIP | 28-PDIP | 28-PDIP | 28-PDIP | 44-PLCC, 32 Leads (16.58x16.58) |
