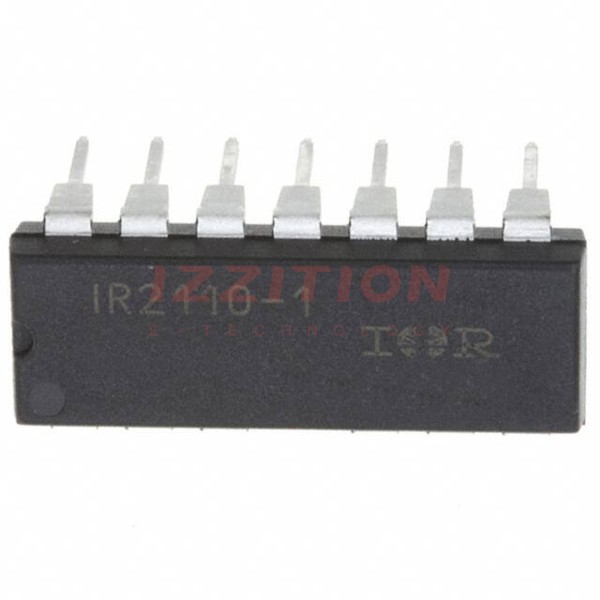

| Part Number | IR2110-1PBF | IR2112-1PBF | IR2110-2PBF | IR2113-1PBF |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | High-Side or Low-Side | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 3.3V ~ 20V | 10V ~ 20V | 3.3V ~ 20V | 3.3V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V | 6V, 9.5V | 6V, 9.5V | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 250mA, 500mA | 2A, 2A | 2A, 2A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500 V | 600 V | 500 V | 600 V |
| Rise / Fall Time (Typ) | 25ns, 17ns | 80ns, 40ns | 25ns, 17ns | 25ns, 17ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm), 13 Leads | 14-DIP (0.300", 7.62mm), 13 Leads | 16-DIP (0.300", 7.62mm), 14 Leads | 14-DIP (0.300", 7.62mm), 13 Leads |
| Supplier Device Package | 14-PDIP | 14-PDIP | 16-PDIP | 14-PDIP |
