Infineon Technologies-IPZA60R024P7XKSA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	101A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	24mOhm @ 42A, 10V
Vgs(th) (Max) @ Id:	4V @ 2.03mA
Gate Charge (Qg) (Max) @ Vgs:	164 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	7144 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	291W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO247-4-3
Package / Case:	TO-247-4

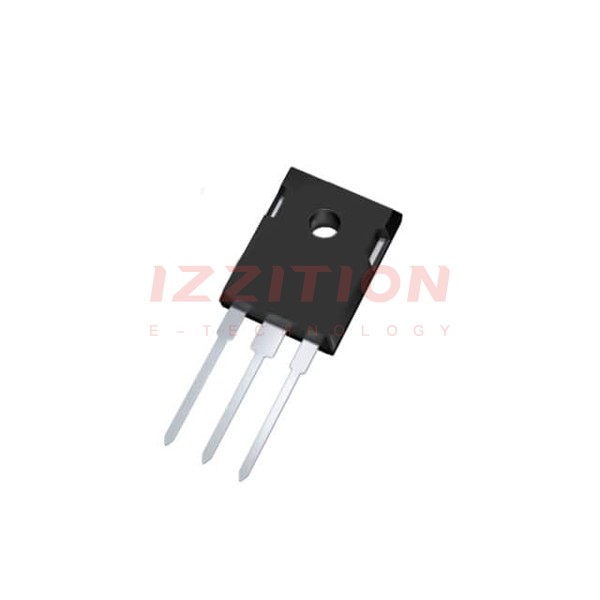

Infineon Technologies IPZA60R024P7XKSA1
