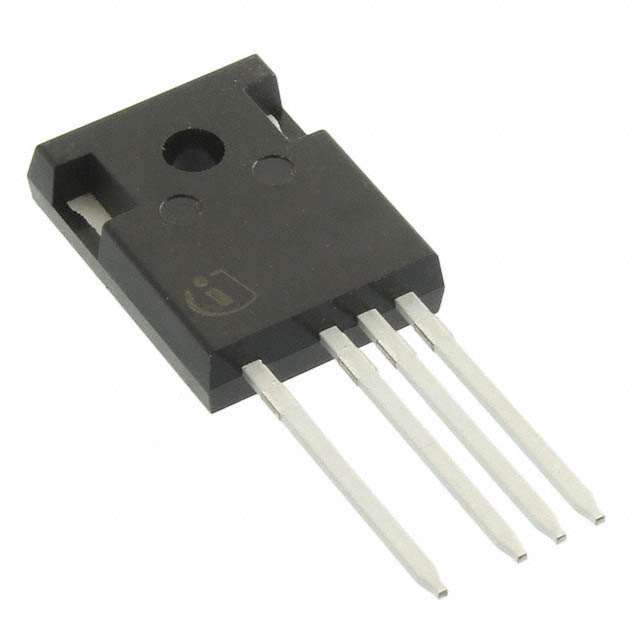

| Part Number | IPZ65R065C7XKSA1 | IPZ65R095C7XKSA1 | IPW65R065C7XKSA1 | IPZ65R045C7XKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 33A (Tc) | 24A (Tc) | 33A (Tc) | 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 17.1A, 10V | 95mOhm @ 11.8A, 10V | 65mOhm @ 17.1A, 10V | 45mOhm @ 24.9A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 850µA | 4V @ 590µA | 4V @ 850µA | 4V @ 1.25mA |
| Gate Charge (Qg) (Max) @ Vgs | 64 nC @ 10 V | 45 nC @ 10 V | 64 nC @ 10 V | 93 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3020 pF @ 400 V | 2140 pF @ 400 V | 3020 pF @ 400 V | 4340 pF @ 400 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 171W (Tc) | 128W (Tc) | 171W (Tc) | 227W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO247-4 | PG-TO247-4 | PG-TO247-3 | PG-TO247 |
| Package / Case | TO-247-4 | TO-247-4 | TO-247-3 | TO-247-4 |
