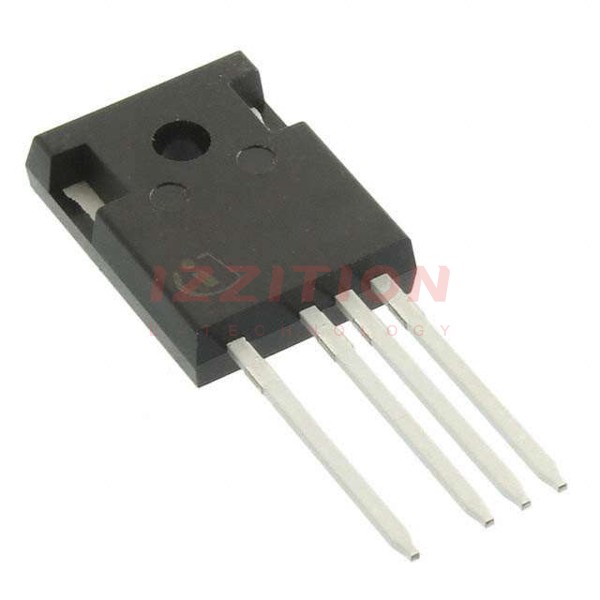

| Part Number | IPZ60R037P7XKSA1 | IPZA60R037P7XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 76A (Tc) | 76A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 37mOhm @ 29.5A, 10V | 37mOhm @ 29.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1.48mA | 4V @ 1.48mA |
| Gate Charge (Qg) (Max) @ Vgs | 121 nC @ 10 V | 121 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5243 pF @ 400 V | 5243 pF @ 400 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 255W (Tc) | 255W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | PG-TO247-4 | PG-TO247-4 |
| Package / Case | TO-247-4 | TO-247-4 |
