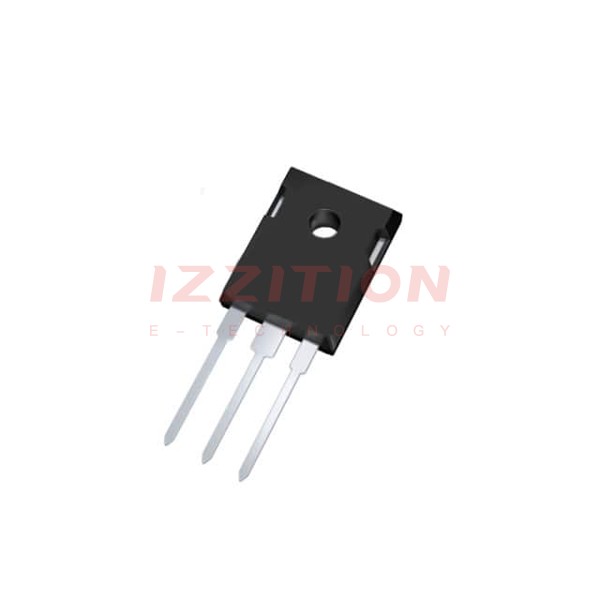

| Part Number | IPWS65R050CFD7AXKSA1 | IPW65R050CFD7AXKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) | 45A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 24.8A, 10V | 50mOhm @ 24.8A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1.24mA | 4.5V @ 1.24mA |
| Gate Charge (Qg) (Max) @ Vgs | 102 nC @ 10 V | 102 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4975 pF @ 400 V | 4975 pF @ 400 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 227W (Tc) | 227W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | PG-TO247-3-41 | PG-TO247-3-41 |
| Package / Case | TO-247-3 | TO-247-3 |
