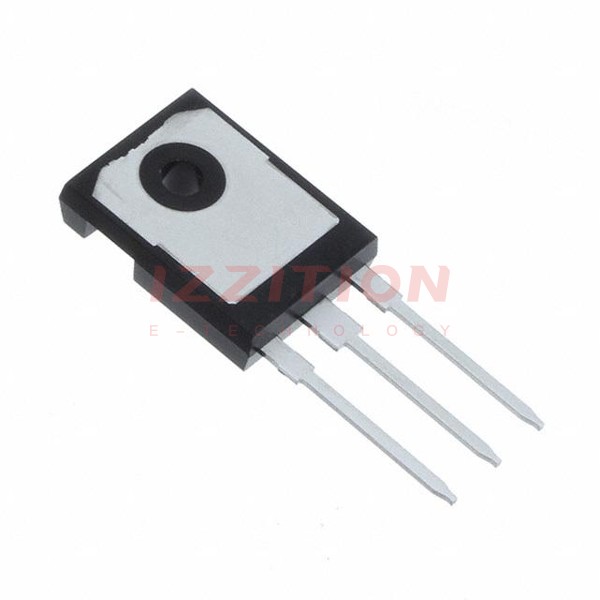

| Part Number | IPW60R125CFD7XKSA1 | IPW60R145CFD7XKSA1 | IPW60R105CFD7XKSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | - | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | - | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) | 16A (Tc) | 21A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - | 10V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 7.8A, 10V | - | 105mOhm @ 9.3A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 390µA | - | 4.5V @ 470µA |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V | - | 42 nC @ 10 V |
| Vgs (Max) | ±20V | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1503 pF @ 400 V | - | 1752 pF @ 400 V |
| FET Feature | - | Standard | - |
| Power Dissipation (Max) | 92W (Tc) | - | 106W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Supplier Device Package | PG-TO247-3 | - | PG-TO247-3-41 |
| Package / Case | TO-247-3 | - | TO-247-3 |
