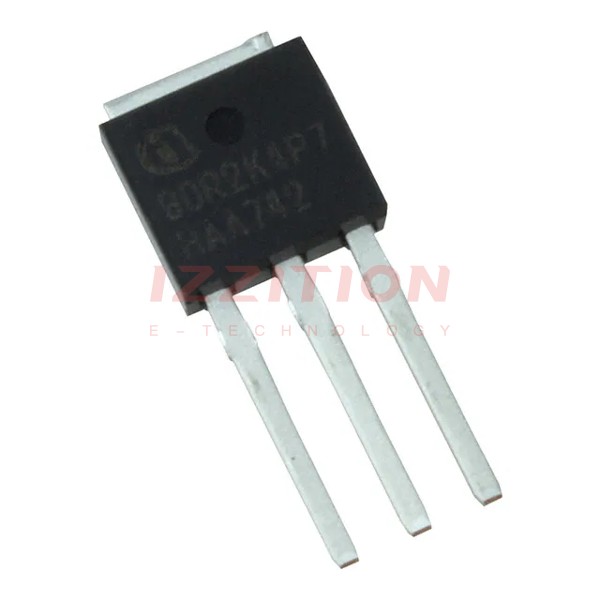

| Part Number | IPU95R750P7AKMA1 | IPU95R450P7AKMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 950 V | 950 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) | 14A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 4.5A, 10V | 450mOhm @ 7.2A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 220µA | 3.5V @ 360µA |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V | 35 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 712 pF @ 400 V | 1053 pF @ 400 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 73W (Tc) | 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | PG-TO251-3 | PG-TO251-3 |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
