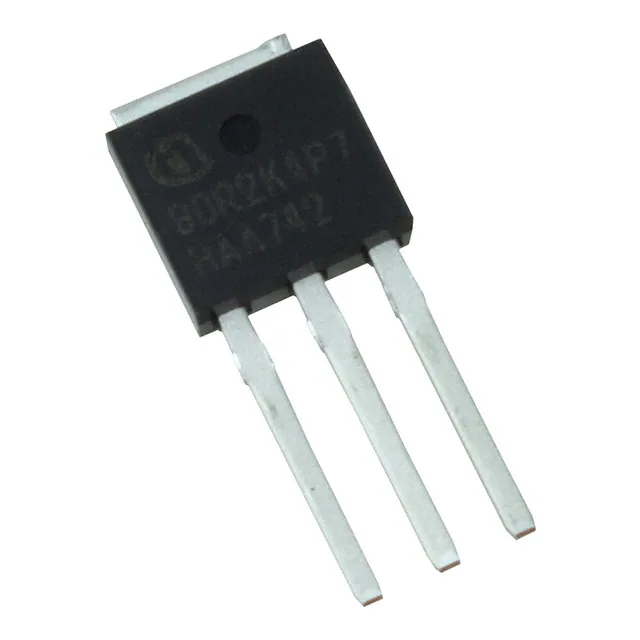

| Part Number | IPU80R2K0P7AKMA1 | IPU80R2K4P7AKMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) | 2.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 940mA, 10V | 2.4Ohm @ 800mA, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 50µA | 3.5V @ 40µA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 10 V | 7.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 175 pF @ 500 V | 150 pF @ 500 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 24W (Tc) | 22W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Through Hole |
| Supplier Device Package | PG-TO251-3 | PG-TO251-3 |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
