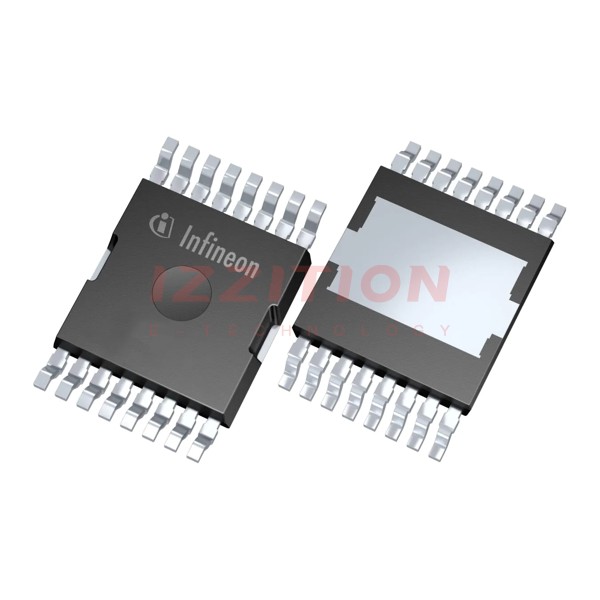

| Part Number | IPTC019N10NM5ATMA1 | IPTC015N10NM5ATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Ta), 279A (Tc) | 35A (Ta), 354A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 100A, 10V | 1.5mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 210µA | 3.8V @ 275µA |
| Gate Charge (Qg) (Max) @ Vgs | 160 nC @ 10 V | 208 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 12000 pF @ 50 V | 16000 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.8W (Ta), 300W (Tc) | 3.8W (Ta), 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-HDSOP-16-2 | PG-HDSOP-16-2 |
| Package / Case | 16-PowerSOP Module | 16-PowerSOP Module |
