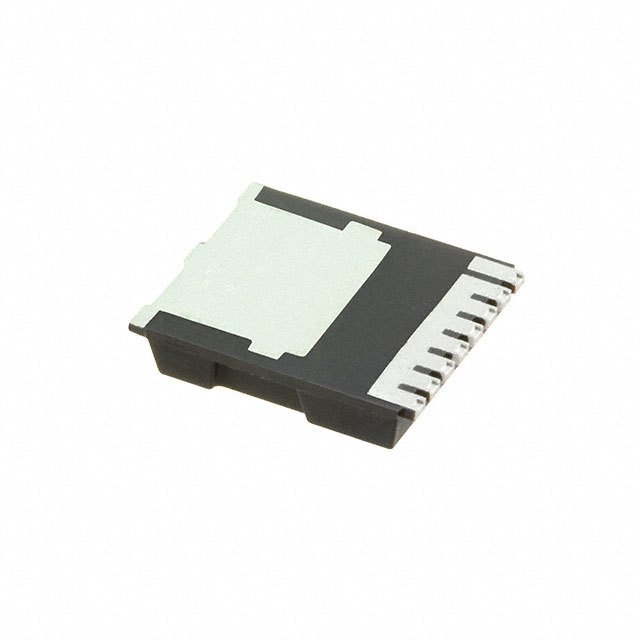

| Part Number | IPT020N10N5ATMA1 | IPT026N10N5ATMA1 | IPT020N10N3ATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Ta), 260A (Tc) | 27A (Ta), 202A (Tc) | 300A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 150A, 10V | 2.6mOhm @ 150A, 10V | 2mOhm @ 150A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 202µA | 3.8V @ 158µA | 3.5V @ 272µA |
| Gate Charge (Qg) (Max) @ Vgs | 152 nC @ 10 V | 120 nC @ 10 V | 156 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 11000 pF @ 50 V | 8800 pF @ 50 V | 11200 pF @ 50 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 273W (Tc) | 214W (Tc) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-HSOF-8-1 | PG-HSOF-8-1 | PG-HSOF-8-1 |
| Package / Case | 8-PowerSFN | 8-PowerSFN | 8-PowerSFN |
