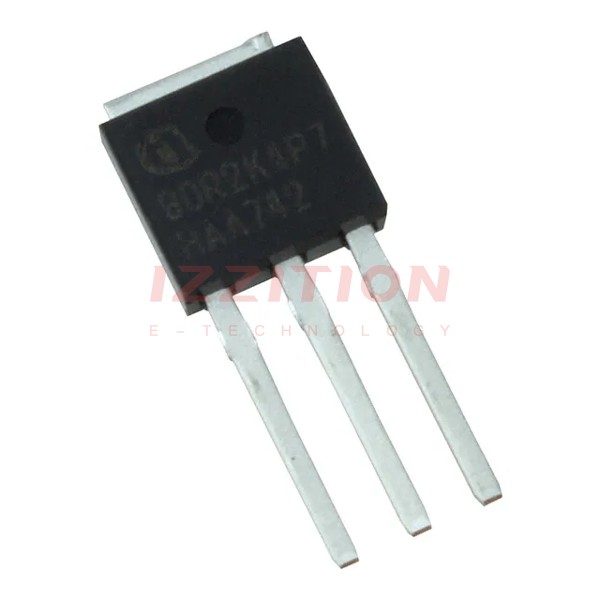

| Part Number | IPSA70R450P7SAKMA1 | IPSA70R750P7SAKMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 700 V | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) | 6.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 450mOhm @ 2.3A, 10V | 750mOhm @ 1.4A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 120µA | 3.5V @ 70µA |
| Gate Charge (Qg) (Max) @ Vgs | 13.1 nC @ 400 V | 8.3 nC @ 400 V |
| Vgs (Max) | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 424 pF @ 400 V | 306 pF @ 400 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 50W (Tc) | 34.7W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | PG-TO251-3 | PG-TO251-3 |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA |
