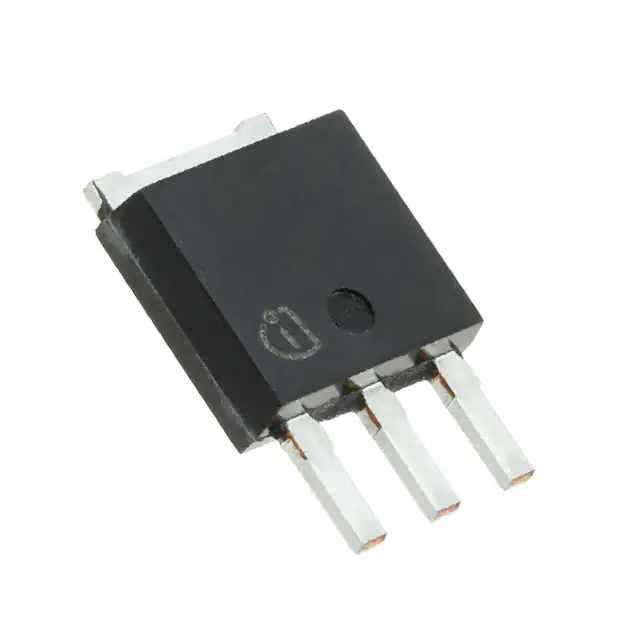

| Part Number | IPS65R1K0CEAKMA1 | IPS65R1K0CEAKMA2 | IPS65R1K5CEAKMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Not For New Designs | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Tc) | 7.2A (Tc) | 3.1A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1Ohm @ 1.5A, 10V | 1Ohm @ 1.5A, 10V | 1.5Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 200µA | 3.5V @ 200µA | 3.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 15.3 nC @ 10 V | 15.3 nC @ 10 V | 10.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 328 pF @ 100 V | 328 pF @ 100 V | 225 pF @ 100 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 37W (Tc) | 68W (Tc) | 28W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-251 | PG-TO251-3-342 | TO-251 |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
