Infineon Technologies-IPS60R210PFD7SAKMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	210mOhm @ 4.9A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 240µA
Gate Charge (Qg) (Max) @ Vgs:	23 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1015 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	64W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO251-3
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA

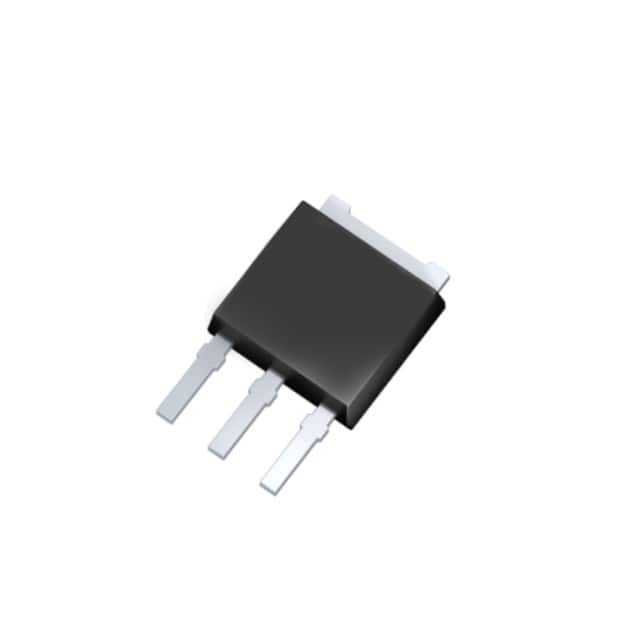

Infineon Technologies IPS60R210PFD7SAKMA1
