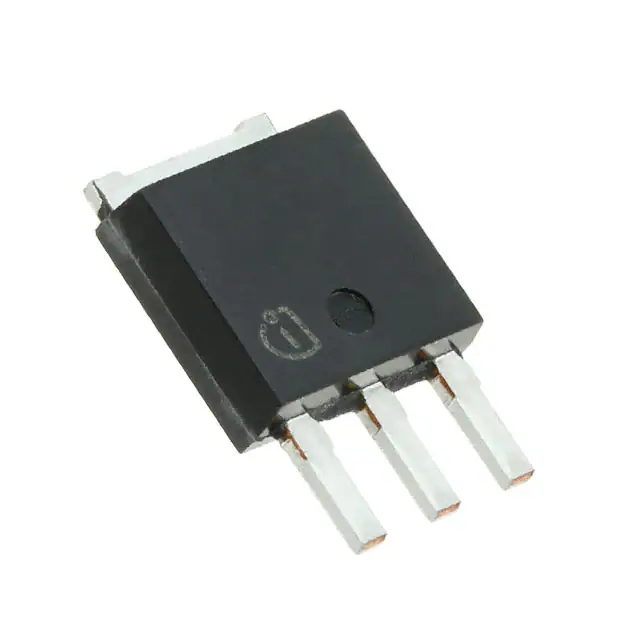

| Part Number | IPS13N03LA G | IPS03N03LA G | IPS10N03LA G |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | 90A (Tc) | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 12.8mOhm @ 30A, 10V | 3.4mOhm @ 60A, 10V | 10.4mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 20µA | 2V @ 70µA | 2V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.3 nC @ 5 V | 41 nC @ 5 V | 11 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1043 pF @ 15 V | 5200 pF @ 15 V | 1358 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 46W (Tc) | 115W (Tc) | 52W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO251-3-11 | PG-TO251-3-11 | PG-TO251-3-11 |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
