Infineon Technologies-IPS12CN10LGBKMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	69A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	11.8mOhm @ 69A, 10V
Vgs(th) (Max) @ Id:	2.4V @ 83µA
Gate Charge (Qg) (Max) @ Vgs:	58 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	5600 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	125W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO251-3-11
Package / Case:	TO-251-3 Stub Leads, IPak

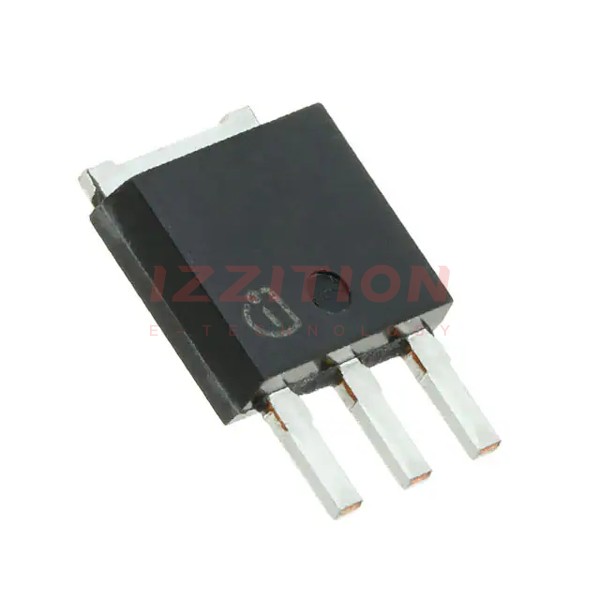

Infineon Technologies IPS12CN10LGBKMA1
