Infineon Technologies-IPS110N12N3GBKMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	120 V
Current - Continuous Drain (Id) @ 25°C:	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	11mOhm @ 75A, 10V
Vgs(th) (Max) @ Id:	4V @ 83µA
Gate Charge (Qg) (Max) @ Vgs:	65 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4310 pF @ 60 V
FET Feature:	-
Power Dissipation (Max):	136W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO251-3-11
Package / Case:	TO-251-3 Stub Leads, IPak

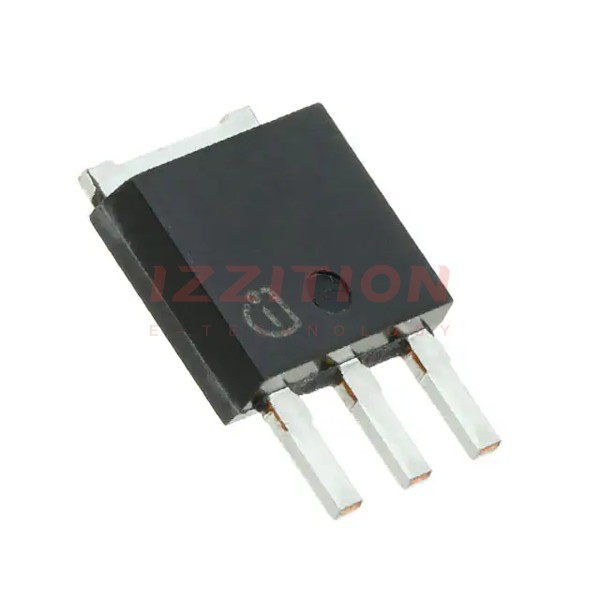

Infineon Technologies IPS110N12N3GBKMA1
