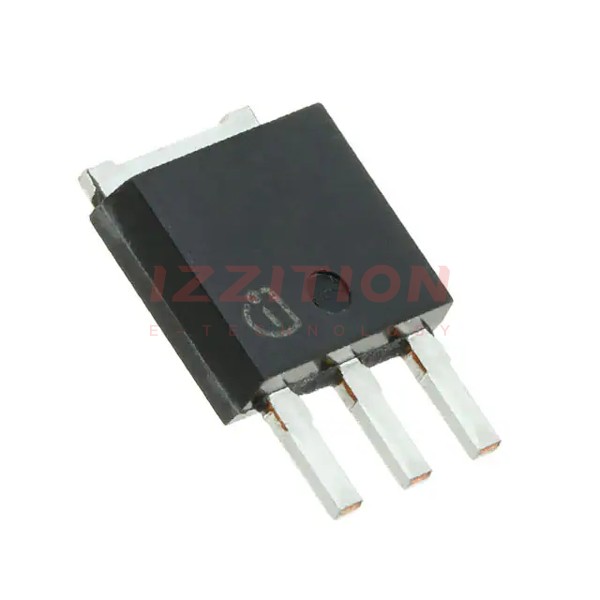

| Part Number | IPS040N03LGBKMA1 | IPS050N03LGBKMA1 | IPS040N03LGAKMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 90A (Tc) | 50A (Tc) | 90A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 30A, 10V | 5mOhm @ 30A, 10V | 4mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 2.2V @ 250µA | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V | 31 nC @ 10 V | 38 nC @ 10 V |
| Vgs (Max) | ±20V | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3900 pF @ 15 V | 3200 pF @ 15 V | 3900 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 79W (Tc) | 68W (Tc) | 79W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO251-3-11 | PG-TO251-3-11 | PG-TO251-3-11 |
| Package / Case | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak | TO-251-3 Stub Leads, IPak |
