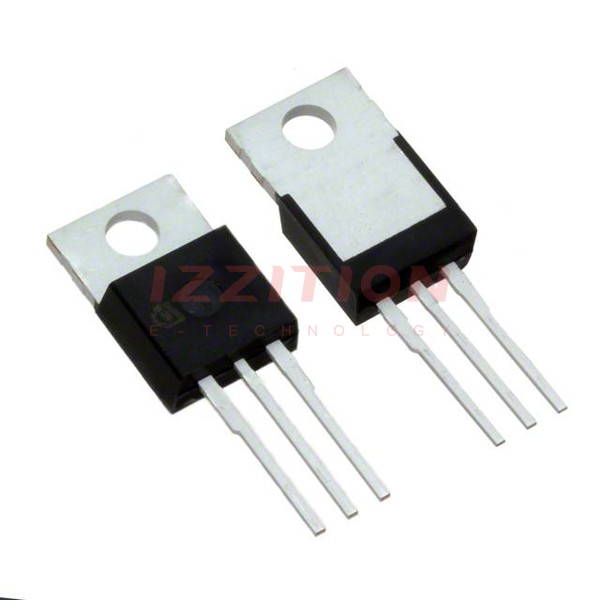

| Part Number | IPP80R750P7XKSA1 | IPP80R450P7XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 2.7A, 10V | 450mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 140µA | 3.5V @ 220µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V | 24 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 460 pF @ 500 V | 770 pF @ 500 V |
| FET Feature | - | Super Junction |
| Power Dissipation (Max) | 51W (Tc) | 73W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-3 | PG-TO220-3 |
| Package / Case | TO-220-3 | TO-220-3 |
