Please send RFQ , we will respond immediately.

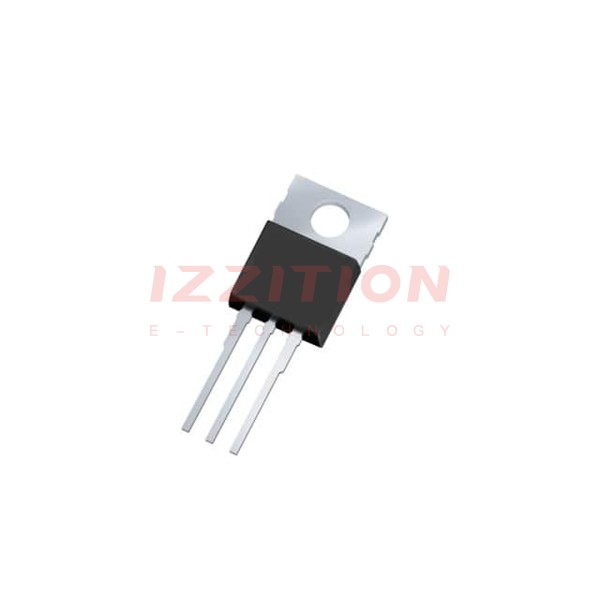

| Part Number | IPP80N06S405AKSA2 | IPP80N06S407AKSA2 | IPP80N06S4L05AKSA2 | IPP80N06S405AKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | - | N-Channel | N-Channel | N-Channel |
| Technology | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 60 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | - | 80A (Tc) | 80A (Tc) | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | - | 7.4mOhm @ 80A, 10V | 8.5mOhm @ 40A, 4.5V | 5.7mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | - | 4V @ 40µA | 2.2V @ 60µA | 4V @ 60µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 56 nC @ 10 V | 110 nC @ 10 V | 81 nC @ 10 V |
| Vgs (Max) | - | ±20V | ±16V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 4500 pF @ 25 V | 8180 pF @ 25 V | 6500 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | - | 79W (Tc) | 107W (Tc) | 107W (Tc) |
| Operating Temperature | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | - | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | PG-TO220-3-1 | PG-TO220-3-1 | PG-TO220-3-1 |
| Package / Case | - | TO-220-3 | TO-220-3 | TO-220-3 |
