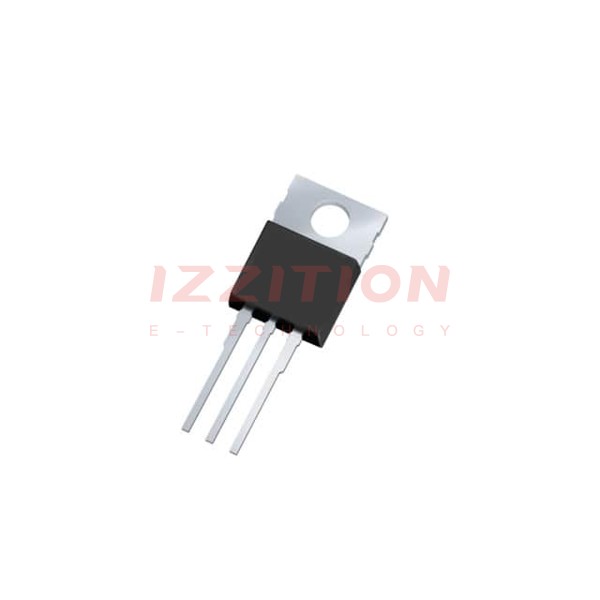

| Part Number | IPP70N12S3L12AKSA1 | IPP70N10S3L12AKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active |
| FET Type | - | N-Channel |
| Technology | - | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 100 V |
| Current - Continuous Drain (Id) @ 25°C | - | 70A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - | 12.1mOhm @ 70A, 10V |
| Vgs(th) (Max) @ Id | - | 2.4V @ 83µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 80 nC @ 10 V |
| Vgs (Max) | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 5550 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 125W (Tc) |
| Operating Temperature | - | -55°C ~ 175°C (TJ) |
| Mounting Type | - | Through Hole |
| Supplier Device Package | - | PG-TO220-3-1 |
| Package / Case | - | TO-220-3 |
