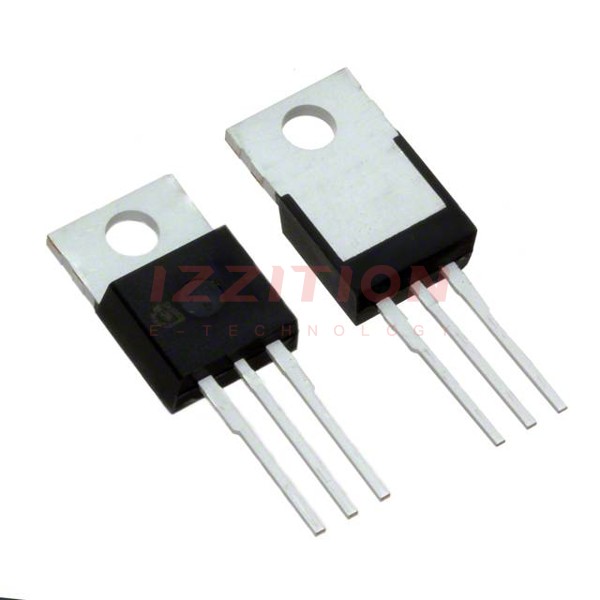

| Part Number | IPP60R600P7XKSA1 | IPP60R600P6XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) | 7.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 1.7A, 10V | 600mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 80µA | 4.5V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 10 V | 12 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 363 pF @ 400 V | 557 pF @ 100 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 30W (Tc) | 63W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-3 | PG-TO220-3 |
| Package / Case | TO-220-3 | TO-220-3 |
