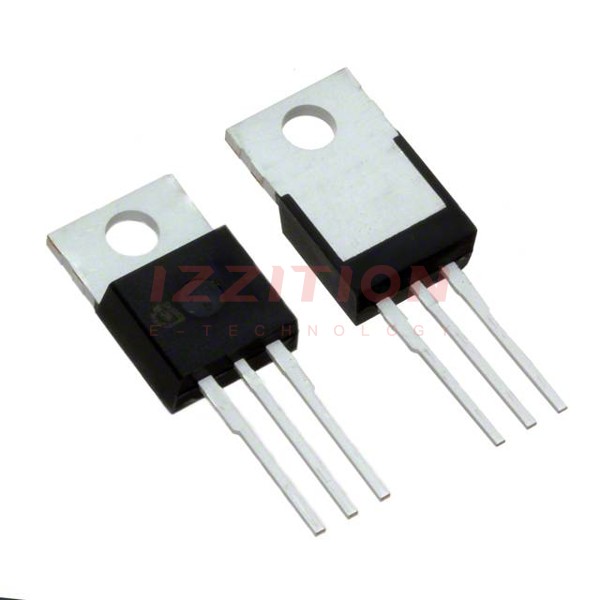

| Part Number | IPP60R360P7XKSA1 | IPP60R060P7XKSA1 | IPP60R160P7XKSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 600 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) | 48A (Tc) | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 2.7A, 10V | 60mOhm @ 15.9A, 10V | 160mOhm @ 6.3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 140µA | 4V @ 800µA | 4V @ 350µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 67 nC @ 10 V | 31 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 555 pF @ 400 V | 2895 pF @ 400 V | 1317 pF @ 400 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 41W (Tc) | 164W (Tc) | 81W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-3 | PG-TO220-3 | PG-TO220-3-1 |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 |
