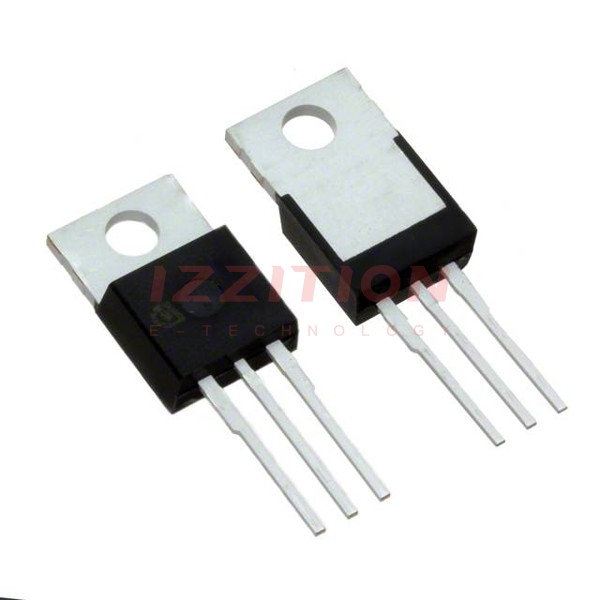

| Part Number | IPP60R180P7XKSA1 | IPP60R280P7XKSA1 | IPP60R080P7XKSA1 | IPP60R120P7XKSA1 | IPP60R160P7XKSA1 | IPP60R180C7XKSA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 600 V | 650 V | 600 V | 650 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) | 12A (Tc) | 37A (Tc) | 26A (Tc) | 20A (Tc) | 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 5.6A, 10V | 280mOhm @ 3.8A, 10V | 80mOhm @ 11.8A, 10V | 120mOhm @ 8.2A, 10V | 160mOhm @ 6.3A, 10V | 180mOhm @ 5.3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 280µA | 4V @ 190µA | 4V @ 590µA | 4V @ 410µA | 4V @ 350µA | 4V @ 260µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V | 18 nC @ 10 V | 51 nC @ 10 V | 36 nC @ 10 V | 31 nC @ 10 V | 24 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1081 pF @ 400 V | 761 pF @ 400 V | 2180 pF @ 400 V | 1544 pF @ 400 V | 1317 pF @ 400 V | 1080 pF @ 400 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 72W (Tc) | 53W (Tc) | 129W (Tc) | 95W (Tc) | 81W (Tc) | 68W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-3 | PG-TO220-3 | PG-TO220-3 | PG-TO220-3 | PG-TO220-3-1 | PG-TO220-3-1 |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
