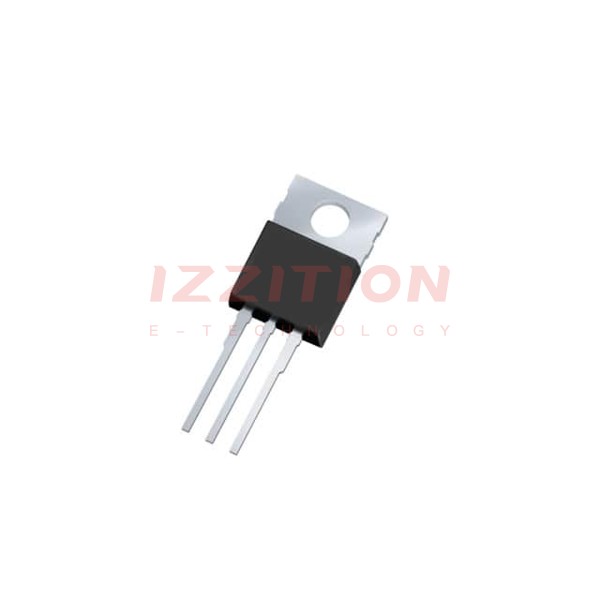

| Part Number | IPP50R250CPXKSA1 | IPP60R250CPXKSA1 | IPP50R350CPXKSA1 | IPP50R250CPHKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Obsolete | Obsolete | Obsolete |
| FET Type | - | N-Channel | N-Channel | N-Channel |
| Technology | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 650 V | 550 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | - | 12A (Tc) | 10A (Tc) | 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | - | 250mOhm @ 7.8A, 10V | 350mOhm @ 5.6A, 10V | 250mOhm @ 7.8A, 10V |
| Vgs(th) (Max) @ Id | - | 3.5V @ 440µA | 3.5V @ 370µA | 3.5V @ 520µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 35 nC @ 10 V | 25 nC @ 10 V | 36 nC @ 10 V |
| Vgs (Max) | - | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1200 pF @ 100 V | 1020 pF @ 100 V | 1420 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | - | 104W (Tc) | 89W (Tc) | 114W (Tc) |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | - | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | PG-TO220-3 | PG-TO220-3-1 | PG-TO220-3-1 |
| Package / Case | - | TO-220-3 | TO-220-3 | TO-220-3 |
