| Part Number | IPN70R900P7SATMA1 | IPN70R600P7SATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 700 V | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) | 8.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 900mOhm @ 1.1A, 10V | 600mOhm @ 1.8A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 60µA | 3.5V @ 90µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.8 nC @ 10 V | 10.5 nC @ 10 V |
| Vgs (Max) | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 211 pF @ 400 V | 364 pF @ 400 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 6.5W (Tc) | 6.9W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

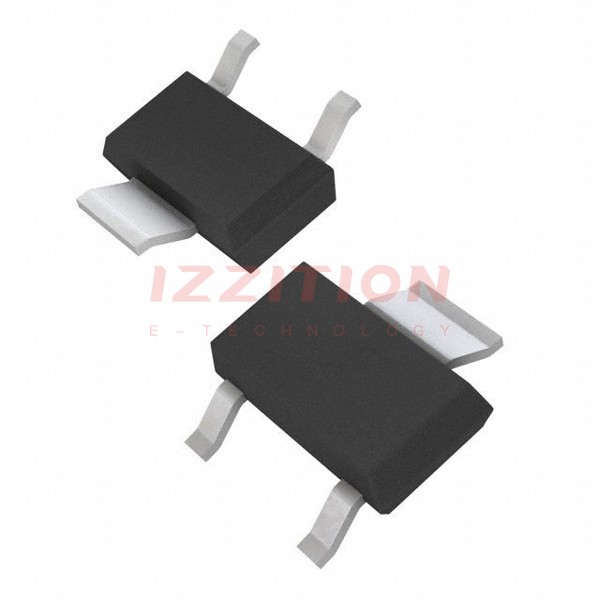

| Supplier Device Package | PG-SOT223 | PG-SOT223 |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
