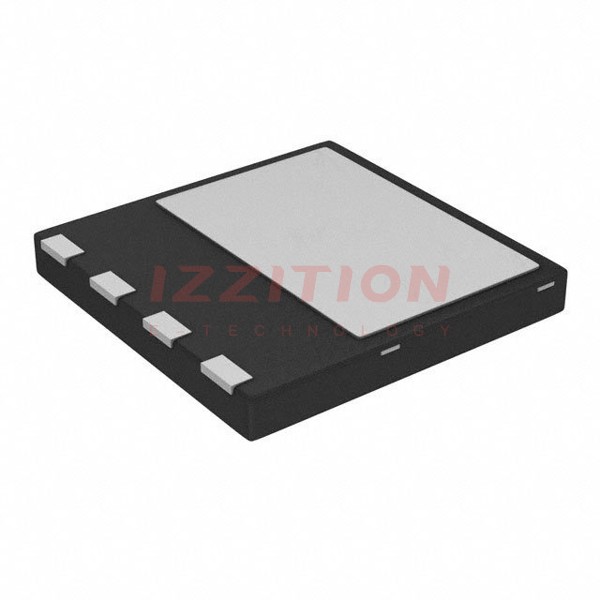

| Part Number | IPL60R185P7AUMA1 | IPL60R285P7AUMA1 | IPL60R085P7AUMA1 | IPL60R105P7AUMA1 | IPL60R125P7AUMA1 | IPL60R185C7AUMA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 600 V | 650 V | 650 V | 650 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) | 13A (Tc) | 39A (Tc) | 33A (Tc) | 27A (Tc) | 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 185mOhm @ 5.6A, 10V | 285mOhm @ 3.8A, 10V | 85mOhm @ 11.8A, 10V | 105mOhm @ 10.5A, 10V | 125mOhm @ 8.2A, 10V | 185mOhm @ 5.3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 280µA | 4V @ 190µA | 4V @ 590µA | 4V @ 530µA | 4V @ 410µA | 4V @ 260µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V | 18 nC @ 10 V | 51 nC @ 10 V | 45 nC @ 10 V | 36 nC @ 10 V | 24 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1081 pF @ 400 V | 761 pF @ 400 V | 2180 pF @ 400 V | 1952 pF @ 400 V | 1544 pF @ 400 V | 1080 pF @ 400 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 81W (Tc) | 59W (Tc) | 154W (Tc) | 137W (Tc) | 111W (Tc) | 77W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-VSON-4 | PG-VSON-4 | PG-VSON-4 | PG-VSON-4 | PG-VSON-4 | PG-VSON-4 |
| Package / Case | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN |
