Please send RFQ , we will respond immediately.

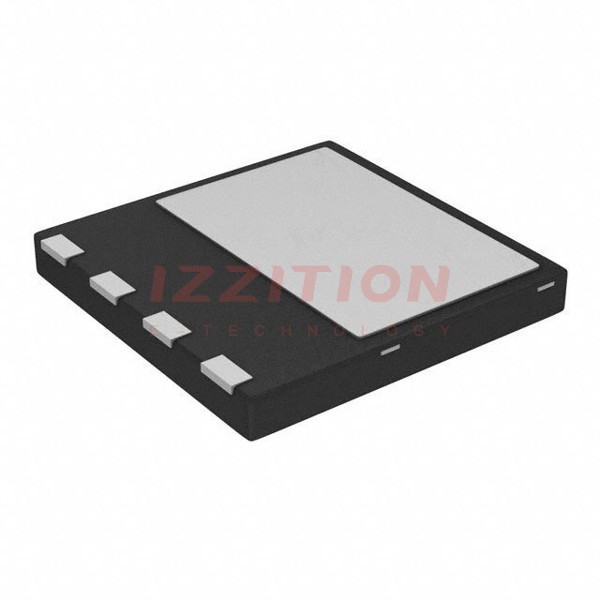

| Part Number | IPL60R065P7AUMA1 | IPL60R085P7AUMA1 | IPL60R365P7AUMA1 | IPL60R065C7AUMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 41A (Tc) | 39A (Tc) | 10A (Tc) | 29A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 15.9A, 10V | 85mOhm @ 11.8A, 10V | 365mOhm @ 2.7A, 10V | 65mOhm @ 15.9A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 800µA | 4V @ 590µA | 4V @ 140µA | 4V @ 800µA |
| Gate Charge (Qg) (Max) @ Vgs | 67 nC @ 10 V | 51 nC @ 10 V | 13 nC @ 10 V | 68 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2895 pF @ 400 V | 2180 pF @ 400 V | 555 pF @ 400 V | 2850 pF @ 400 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 201W (Tc) | 154W (Tc) | 46W (Tc) | 180W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-VSON-4 | PG-VSON-4 | PG-VSON-4 | PG-VSON-4-1 |
| Package / Case | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN | 4-PowerTSFN |
